Albrecht Wrench-Lock Precision CNC Drill Chucks

- A drill chuck can hold any size drill shank within its range. This is important because many tap drills have odd-sized shanks that are not compatible with conventional toolholders and collets.
- As the jaws of a drill chuck close, they always remain parallel to centerline. This results in uniform gripping force and maximum accuracy, regardless of the drill shank diameter.

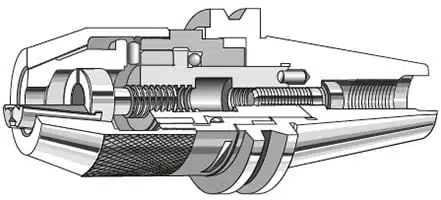

- Internal construction is very similar to Albrecht Classic Drill Chucks.
- Integral CAT taper makes these chucks shorter and more rigid than a chuck/arbor combination, resulting in:
- Greater accuracy
- Greater rigidity
- Larger work envelope
- Integral shank eliminates the possibility of a chuck slipping on its arbor.
- Chuck can be easily tightened and opened by hand.
- Extra tightening force can be achieved by using a spanner wrench (included), although this chuck also incorporates the same self-tightening feature as the Classic models.


Albrecht Wrench-Lock CNC Drill Chucks
Filters
Sort results
Reset
Apply
Chuck Model | Capacity (inches) | Capacity (millimeters) | THRU-HOLE DIA. | CHUCK MOUNT | TAPER | Shank Type | A | D | L1 | L2 | D1 | D2 | Thread | Maximum RPM | Weight (lbs.) | PART NUMBER | PRICE | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WL130-CAT40 |
1⁄32 - 1⁄2 |
1 - 13 |
CAT 40 |
2″ |
3 15⁄16″ |
4 7⁄16″ |
5⁄8 – 1 |
6,500 |
4.6 |
77100 |
$743.00
|
|||||||
WL160-CAT40 |
1⁄16 - 5⁄8 |
1.5 - 16 |
CAT 40 |
2 1⁄4″ |
4 1⁄32″ |
4 5⁄8″ |
5⁄8 – 11 |
6,500 |
5.1 |
77110 |
$839.00
|
|||||||
WL160-CAT50 |
1⁄16 - 5⁄8 |
1.5 - 16 |
CAT 40 |
2 1⁄4″ |
4 1⁄32″ |
4 5⁄8″ |
1 – 8 |
6,500 |
6.2 |
77120 |
$976.00
|
