Royal Ultimate™ Multi-Tasking Live Center

  • Designed specifically for use on the latest multi-tasking CNC machines with lower turrets and/or sub-spindles.
  • Spring-loaded point overcomes the lack of hydraulic compensation found on tailstocks, protecting lower turrets and sub-spindles from overloading and/or crashes.
  • Much longer operating life than other spring-type live centers due to the outstanding sealing characteristics of the exclusive Royal Roto-Shield™ coupled with a long-life spring-loaded neoprene seal.
  • Heavy-duty bearing configuration and optimized spring-pak make the Royal Ultimate™ the perfect choice for all multi-tasking machines.

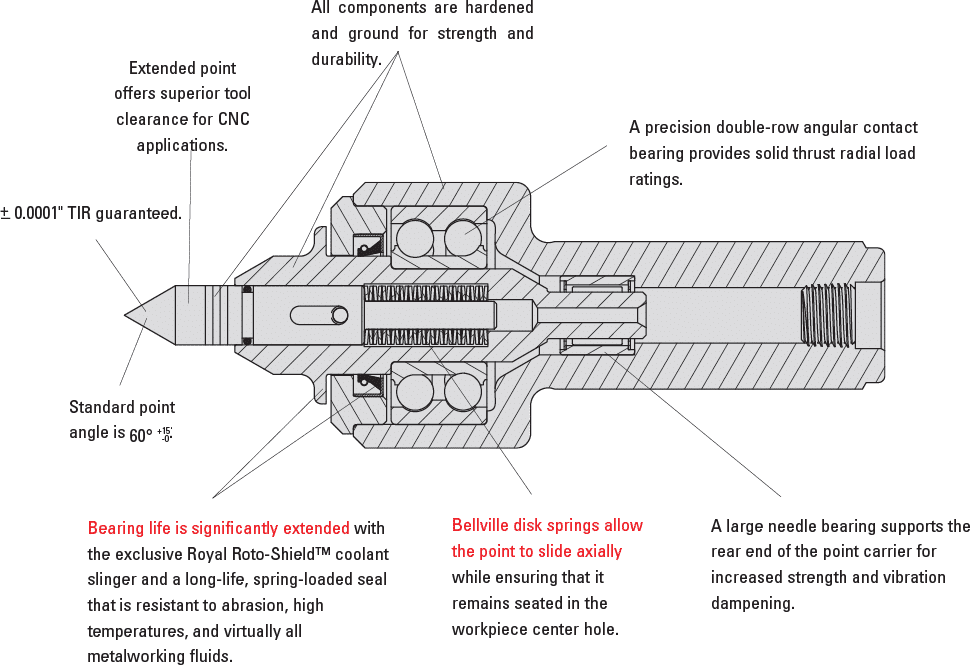

The Royal Ultimate™ Multi-Tasking Live Center
Spring-Loaded Point for Lower Turret and Sub-Spindle Applications
High-Pressure Coolant Approved
Heavy-Duty CNC Spindle Type Live Center Sizing Schematic
Heavy-Duty CNC Spindle Type Live Center Sizing Schematic
* A graphical representation laser-marked onto the body of each Ultimate™ Multi-Tasking Live Center takes the guesswork out of the setup process by clearly identifying optimal working parameters.
Proudly Made In USA

Royal Ultimate™ Multi-Tasking Live Center

Filters Sort results
Reset Apply
A
Shank
Style
B
C
E
F
G
H
I
SPRING
TRAVEL
MAX.
SUGGESTED
RPM1
WEIGHT OF
WORKPIECE
(lbs.)
THRUST
LOAD (lbs.)2
PART NUMBER
PRICE
1 1⁄4 SS
2.25
3.00
1.690
1.75
1.00
0.50
0.94
0.25
5,000
350
200
10590
$1,635.00
Max:
Min: 0
Step: 1
Add

1 Maximum recommended operating limit. Operating above this speed could result in heat build-up and accelerated bearing wear.
2 Exceeding thrust load will bottom-out springs.

Insist on Roto-Shield™ Technology – Only Available on Royal Live Centers
