Royal High-Precision CNC Quad-Bearing Live Centers

  • An excellent choice for precision turning, grinding, and hard-turning.

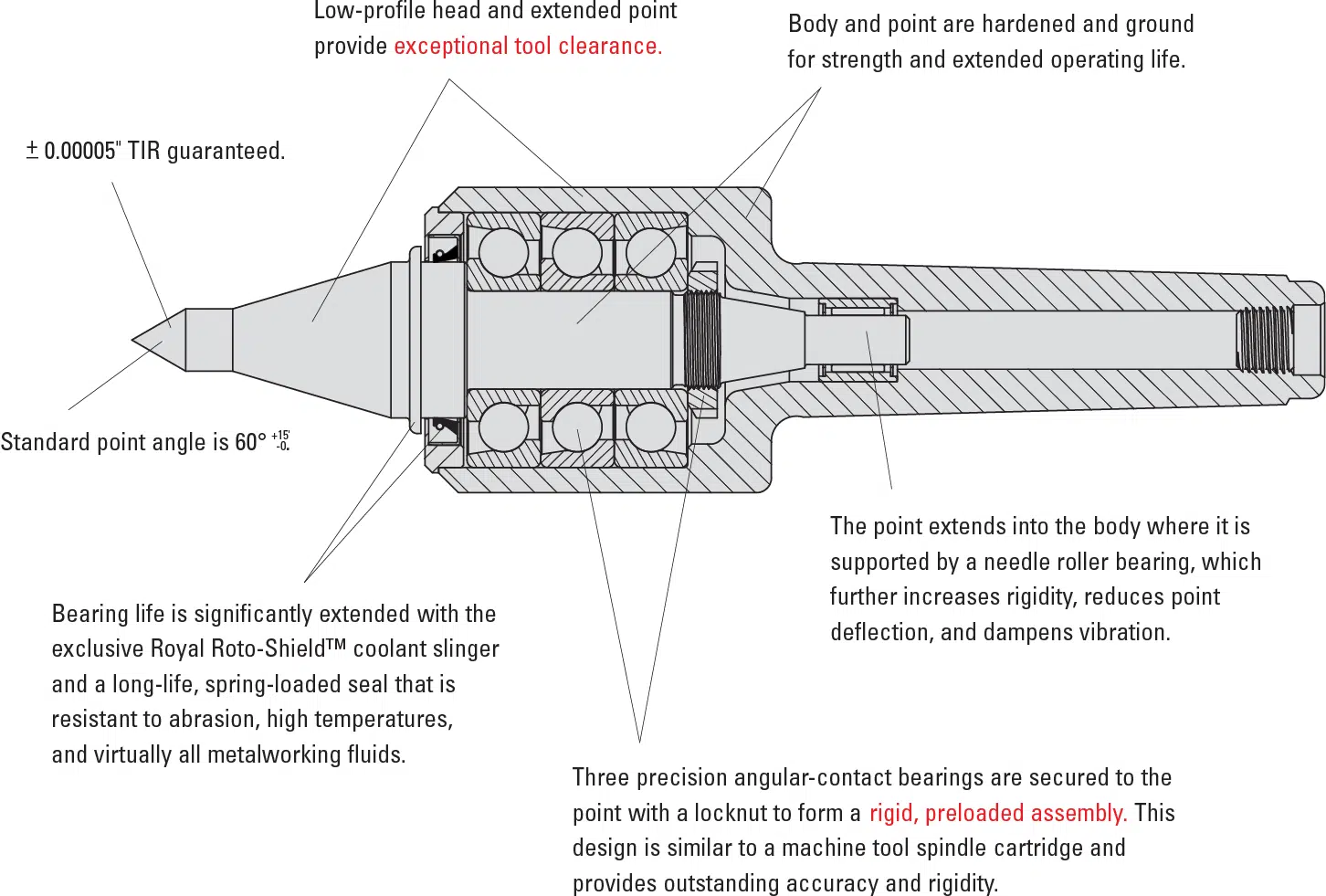

  • Precision, preloaded bearing assembly provides exceptional rigidity and accuracy.
  • Low-profile head and extended point combine to offer superior tool clearance.
  • Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
  • Body and point are hardened and ground for strength and long life.
Royal Heavy-Duty Spindle Type Live Center
High-Pressure Coolant Approved

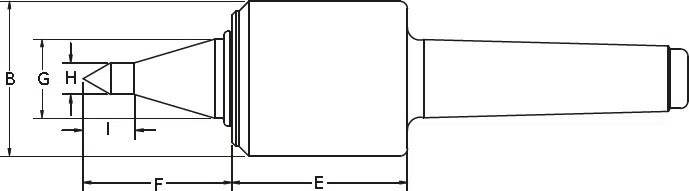

Heavy-Duty CNC Spindle Type Live Center Sizing Schematic
Proudly Made In USA

Royal High-Precision Quad-Bearing Live Centers – CNC Point

Filters Sort results
Reset Apply
Center Taper
Body Diameter
(B)
Body Length
(E)
Point Protrusion
(F)
Point Diameter
(G)
Tip Diameter
(H)
Tip Protrusion
(I)
MAX.
SUGGESTED
RPM
WEIGHT OF
WORKPIECE
(lbs.)
THRUST
LOAD (lbs.)
PART NUMBER
PRICE
2 MT
1.70
2.120
1.75
0.88
0.38
0.63
6,000
465
1,270
10662
$1,145.00
Max:
Min: 0
Step: 1
Add
3 MT
1.70
2.120
1.75
0.88
0.38
0.63
6,000
465
1,270
10663
$1,145.00
Max:
Min: 0
Step: 1
Add
4 MT
2.45
2.780
2.35
1.25
0.50
0.81
5,000
1230
2,150
10664
$1,395.00
Max:
Min: 0
Step: 1
Add
5 MT
2.45
2.780
2.35
1.25
0.50
0.81
5,000
1230
2,150
10665
$1,475.00
Max:
Min: 0
Step: 1
Add
5 MT
3.82
3.890
3.34
2.00
0.75
1.28
3,000
2210
5,300
10475
$2,950.00
Max:
Min: 0
Step: 1
Add
6 MT
3.82
3.890
3.34
2.00
0.75
1.28
3,000
2210
5,300
10476
$3,620.00
Max:
Min: 0
Step: 1
Add
Maximum recommended operating limit. Operating above this speed could result in heat build-up and accelerated bearing wear.
Insist on Roto-Shield™ Technology – Only Available on Royal Live Centers
