ROYAL ULTRA-PRECISION QUICK-GRIP™ COLLETS

View QG-32
Collets
QG-42 Smooth Collet (Inch) shown

QG-32

1.28" Capacity

View QG-42
Collets
QG-42 Smooth Collet (Inch) shown

QG-42

1.66" Capacity

View QG-52
Collets
QG-42 Smooth Collet (Inch) shown

QG-52

2.03" Capacity

View QG-65
Collets
QG-65 Smooth Collet shown

QG-65

2.66" Capacity

View QG-80
Collets
QG-80 Round Smooth Collet

QG-80

3.28" Capacity

View QG-100
Collets
QG-100 Round Smooth Collet

QG-100

4.03" Capacity

NEW
QG-100 to QG-65
Adapter

QG-100 to QG-65 Adapter

These Extremely Advanced Collets Will Revolutionize Your Workholding

  • Industry-leading 0.062" Gripping Range (0.080" for QG-100) – greater than other quick-change collets on the market and more than 12X that of traditional spring collets.
  • Royal Quick-Grip Collets are precision-ground to nominal size, with a gripping range of ±0.031" (0.040” for QG-100) to handle undersized/oversized stock.
    Example – a ½" QG-65 collet is ground to 0.500" dia., and can hold any part ranging in size from 0.469" – 0.531" dia.
  • Ultra-Precision Accuracy – 0.0002" TIR or better guaranteed on round-bores. Total system accuracy (chuck + collet) guaranteed to 0.0004" or better.
  • All Royal Quick-Grip™ Collets are designed for minimal projection beyond the chuck face (≤ 0.020") for optimum rigidity and machine work-zone utilization.
  • All models have a smooth gripping surface, but round-bores are also available from stock in a double-serrated version for very aggressive first-op machining.
  • Vulcanized rubber between the hardened steel collet segments provides outstanding protection against coolant and chip penetration, and Royal’s advanced vulcanization process carries a lifetime guarantee against failure.
  • Collets can be counter-bored for increased capacity.
  • S-type master collets available for QG-65 and QG-80 chuck models.
  • Royal Quick-Grip™ Collets are compatible with some other brands of quick-change chucks, but note that the QG-80 and QG-100 models have a six-slot design (for increased gripping torque) that requires the use of a Royal installation tool. Call us to verify compatibility.
  • Custom sizes and shapes available as quick-ship specials. Collet segments can also be carbide-coated for extremely harsh applications. Contact one of our applications engineers at 1-800-645-4174 to discuss your requirements.

Why Do Top Manufacturers Insist on Royal Quick-Grip™ Collets?

Industry-Leading 0.062" (0.080” for QG-100) Gripping Range Covers More Diameters with Fewer Collets

Ultra-Precision Accuracy – 0.0002" TIR or Better

Vulcanization Guaranteed for Life

Parallel-Grip Maintains Full-Length Part Engagement

QG-80 Round Serrated Collet

Exceptional Grip-Force Enables Very Aggressive Cutting

Exclusive Royal Risk-Free Performance Guarantee

Fast Delivery on Custom Shapes and Sizes

Special Slot Relief Grinding Eliminates "Collet Popping" and Minimizes Chuck Wear

Order Today – Have it Tomorrow

QG-65 Smooth Collet shown

Round – Smooth

QG-65 Serrated Collet shown

Round – Serrated

QG-65 Hex Collet shown (Model 44731)

Hex

Royal QG-65 Square Collet shown (Model 44739)

Square

QG-65 Emergency Collet shown

Emergency

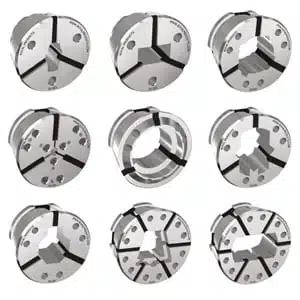

Thousands of Round, Hex, Square and Emergency Collets
IN-STOCK for SAME-DAY SHIPPING!
