Royal Grippex 20L Coolant-Actuated CNC Bar Pullers

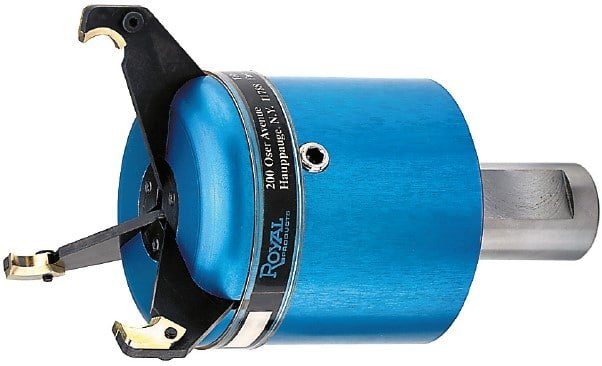

  • The Royal Grippex 20L bar puller is actuated by a CNC lathe’s coolant system. As coolant is fed through the unit, it pushes a piston forward which causes the fingers to close around the bar stock. When the coolant is turned off, the fingers automatically spring open.
  • Self-adjusting mechanism – fingers will close down until they contact the bar stock so no presetting is necessary. This feature allows the Grippex to make multiple pulls on the same workpiece, even after the OD has been turned.
  • Unit can also be operated by air pressure.
  • When fitted with robot gripper jaws, the Grippex can:
    • Remove a bar remnant from a bar-fed lathe and drop it into the parts catcher. This eliminates the risk of the remnant falling into the chip conveyor where it can become jammed and cause damage.
    • Remove a finished workpiece from a sub-spindle and place it into the parts catcher. This eliminates the need for ejectors and also allows the sub-spindle to swallow longer parts.

Here’s how it works:

Step 1
Feed Grippex up to end of bar stock

Step 2
Coolant On (M-08) – Fingers close around bar stock

Step 3
Retract turret to desired position, pulling bar with it

Step 4
Coolant Off (M-09) – Fingers open

Step 5
Begin machining next part

20L Clearance Dimensions

Filters Sort results
Reset Apply
Gripping Range
FINGER
PART NUMBER
A
B
C
D
1⁄8″ - 2 3⁄8″
43170
2 3⁄8″
3 1⁄4″
3 1⁄2″
2 11⁄16″
1⁄8″ - 3 1⁄8″
43175
3 1⁄8″
4″
3 11⁄16″
2 11⁄16″
5⁄16″ - 4 1⁄8″
43180
4 1⁄8″
5 1⁄16″
4 1⁄4″
2 11⁄16″

Royal Grippex 20L Bar Pullers

Filters Sort results
Reset Apply
Shank Size Diameter
PART
NUMBER
PRICE*
1″
43140
$2,085.00
Max:
Min: 0
Step: 1
Add
1 1⁄4″
43145
$2,085.00
Max:
Min: 0
Step: 1
Add
1 1⁄2″
43150
$2,085.00
Max:
Min: 0
Step: 1
Add
Includes one set of standard fingers (3 1⁄8″cap), and one set of inserts.

Replacement Finger Sets

Filters Sort results
Reset Apply
Description
PART
NUMBER
PRICE
Royal Grippex 20L Replacement Finger Sets — 1⁄8″ – 2 3⁄8″ Capacity
43170
$237.00
Max:
Min: 0
Step: 1
Add
Royal Grippex 20L Replacement Finger Sets — 1⁄8″ – 3 1⁄8″(Standard) Capacity
43175
$260.00
Max:
Min: 0
Step: 1
Add
Royal Grippex 20L Replacement Finger Sets — 5⁄16″ – 4 1⁄8″ Capacity
43180
$482.00
Max:
Min: 0
Step: 1
Add

Contact us if you need fingers for an older model Grippex unit.

Replacement Insert Sets

Filters Sort results
Reset Apply
Description
PART
NUMBER
PRICE
Royal Grippex Replacement Insert Set (20L & 20S)
43185
$174.00
Max:
Min: 0
Step: 1
Add

Robot Gripper Jaw Sets

For removing finished parts from a subspindle or removing bar remnants from main spindle.
Filters Sort results
Reset Apply
Description
PART
NUMBER
PRICE
Grippex 20L Robot Gripper Jaw Set
43106
$305.00
Max:
Min: 0
Step: 1
Add

Coolant Adapter

Provides an easy method for feeding coolant or air to unit. Not necessary for most applications.
Filters Sort results
Reset Apply
Description
PART
NUMBER
PRICE
Grippex Coolant Adapter (20L & 20S)
43190
$174.00
Max:
Min: 0
Step: 1
Add
