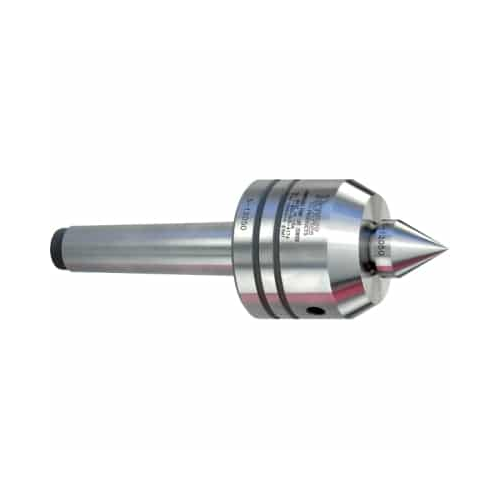

Changeable-Point Live Center
2 MT

$1,055

Part Number: 10002 Category:

  • This versatile live center uses interchangeable points to handle many common turning jobs.
  • Each center includes a #3 standard 60° male point. Other points sold separately.
  • ± 0.00005" TIR guaranteed.*
  • Unique taper/thread design allows points to be easily interchanged and ensures accuracy.
Center Dimension A (Center Taper) 2 MT
Center Dimension B 2.00
Center Dimension E 1.850
Center Dimension F 1.85
Weight of Workpiece (lbs.) 390
Center Dimension G 0.88
Point Threads 5⁄8″ - 18
Max Suggested RPM 6,000
Thrust Load (lbs.) 960
