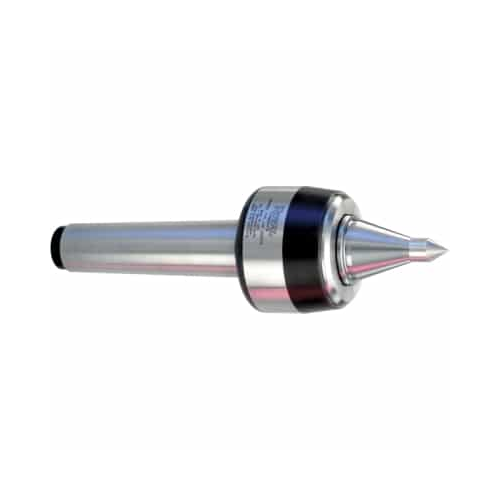

Royal Heavy-Duty CNC Spindle Type Live Center
2 Morse Taper

$923.00

In Stock for Same Day Shipping

  • One of our most popular models – an excellent heavy-duty live center designed to handle almost all CNC and manual turning jobs.
  • Guaranteed accurate to ± 0.00005” TIR or better.
  • Heavy-duty precision bearings provide exceptional radial and thrust load capacities.
  • The thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening.
  •  Extended point design provides extra tool clearance for CNC applications.
  • Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
  • Body and point are hardened and ground for accuracy and durability.
  • All Royal Live Centers are proudly Made in U.S.A.





Center Dimension A (Center Taper)2 MT
Center Dimension B1.75
Center Dimension E1.470
Weight of Workpiece (lbs.)375
Center Dimension F1.35
Center Dimension G0.88
Center Dimension H0.38
Center Dimension I0.63
Max Suggested RPM6,000
Thrust Load (lbs.)2,360

You might also be interested in...

Filters Sort results
Reset Apply
PRODUCT
PART NUMBER
PRICE

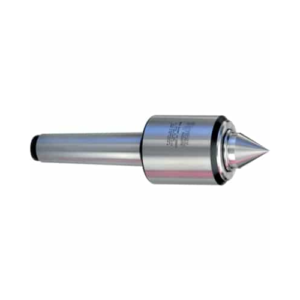

Royal High-Precision Quad-Bearing Live Center — CNC Point, 2 Morse Taper
