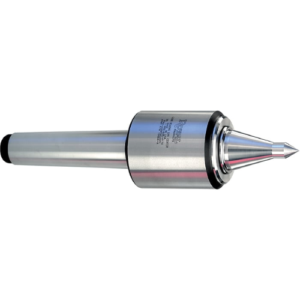

Royal Heavy-Duty CNC Spindle Type Live Center
5 Morse Taper
$1,665.00
In Stock for Same Day Shipping
- One of our most popular models – an excellent heavy-duty live center designed to handle almost all CNC and manual turning jobs.
- Guaranteed accurate to ± 0.00005” TIR or better.
- Heavy-duty precision bearings provide exceptional radial and thrust load capacities.
- The thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening.
- Extended point design provides extra tool clearance for CNC applications.
- Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
- Body and point are hardened and ground for accuracy and durability.
- All Royal Live Centers are proudly Made in U.S.A.
| Live Center Type | Heavy-Duty CNC Spindle Type |
|---|---|
| Center Dimension A (Center Taper) | 5 MT |
| Center Dimension B | 3.45 |
| Center Dimension E | 2.810 |
| Weight of Workpiece (lbs.) | 1,930 |
| Center Dimension F | 2.58 |
| Center Dimension G | 1.50 |
| Center Dimension H | 0.50 |
| Center Dimension I | 0.81 |
| Max Suggested RPM | 3,500 |
| Thrust Load (lbs.) | 5,700 |
