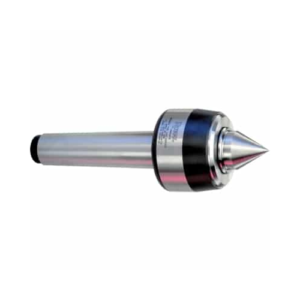

Royal High-Precision Quad-Bearing Live Center
Standard Point, 5 Morse Taper


In Stock for Same Day Shipping

  • An excellent choice for precision turning, grinding, and hard-turning.
  • Guaranteed accurate to ± 0.00005” TIR or better.
  • Precision assembly of three angular contact bearings secured by a lock nut provide exceptional rigidity and accuracy.
  • Low-profile head offers superior tool clearance.
  • Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
  • Body and point are hardened and ground for strength and long life.
  • All Royal Live Centers are proudly Made in U.S.A.


Center Dimension A (Center Taper) 5 MT
Center Dimension B 2.45
Center Dimension E 2.780
Weight of Workpiece (lbs.) 2,240
Center Dimension F 1.47
Center Dimension G 1.25
Max Suggested RPM 5,000
Thrust Load (lbs.) 2,150
