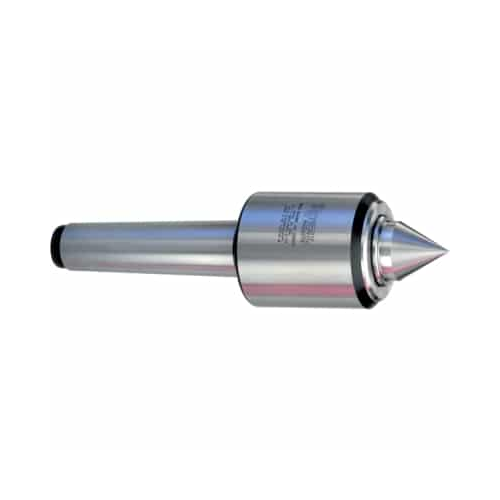

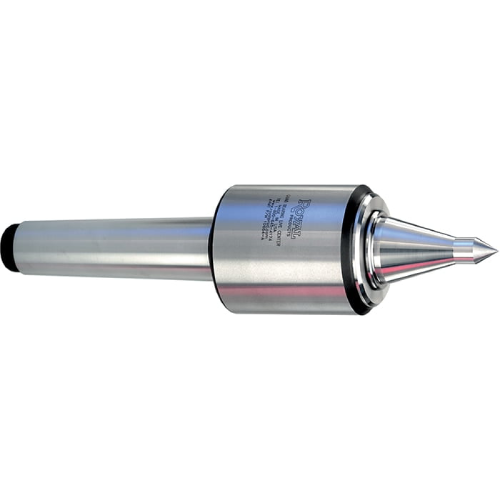

Royal High-Precision Quad-Bearing Live Center
CNC Point, 5 Morse Taper HD
$2,640.00
In Stock for Same Day Shipping
- Heavy-duty model is an excellent choice for turning large, heavy parts up to 5,240 lbs.
- Guaranteed accurate to ± 0.00005” TIR or better.
- Precision assembly of three oversized angular contact bearings secured by a lock nut provide exceptional rigidity and accuracy.
- Low-profile head and extended point combine to offer superior tool clearance.
- Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
- Body and point are hardened and ground for strength and long life.
- All Royal Live Centers are proudly Made in U.S.A.
| Center Dimension A (Center Taper) | 5 MT HD |
|---|---|
| Center Dimension B | 3.82 |
| Center Dimension E | 3.890 |
| Weight of Workpiece (lbs.) | 2,210 |
| Center Dimension F | 3.34 |
| Center Dimension G | 2.00 |
| Center Dimension H | 0.75 |
| Center Dimension I | 1.28 |
| Max Suggested RPM | 3,000 |
| Thrust Load (lbs.) | 5,300 |
