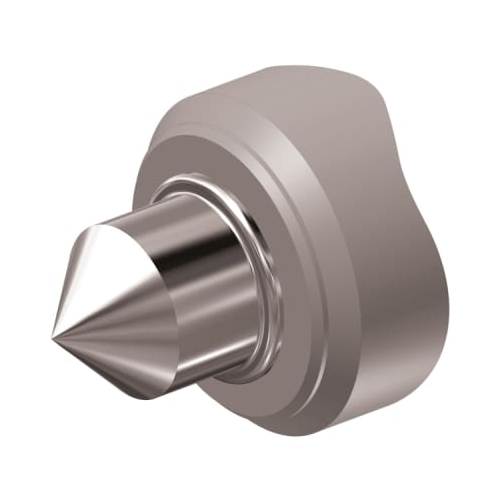

Royal High-Precision Quad-Bearing Live Center — 90° Male Point — 3 Morse Taper
Royal High-Precision Quad-Bearing Live Center — 90° Male Point — 3 Morse Taper - Image 2

Royal High-Precision Quad-Bearing Live Center
90° Male Point
3 Morse Taper

Part Number: 10487 Category:

$1,145.00

In Stock for Same Day Shipping

  • An excellent choice for precision turning, grinding, and hard-turning.
  • Guaranteed accurate to ± 0.00005” TIR or better.
  • Precision assembly of three angular contact bearings secured by a lock nut provide exceptional rigidity and accuracy.
  • Low-profile head combined with a male point with a 90° included angle makes this a great choice for locating on internal part chamfers.
  • Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
  • Body and point are hardened and ground for strength and long life.
  • All Royal Live Centers are proudly Made in U.S.A.



Center Dimension A (Center Taper)3 MT
Center Dimension B1.70
Center Dimension E2.120
Weight of Workpiece (lbs.)885
Center Dimension F1.07
Center Dimension G0.88
Max Suggested RPM6,000
Thrust Load (lbs.)1,270
