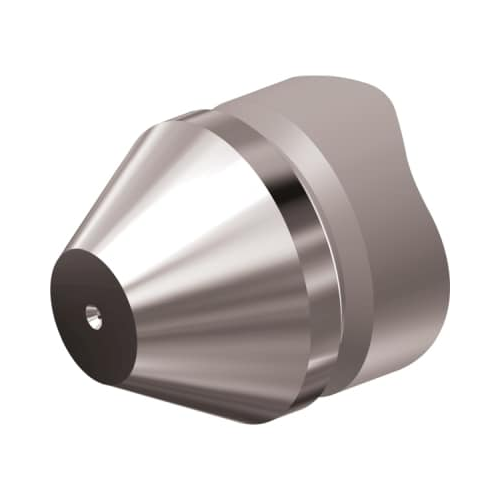

Royal High-Precision Quad-Bearing Live Center
Bull Nose Point
3 Morse Taper
$1,260.00
In Stock for Same Day Shipping
- An excellent choice for precision turning, grinding, and hard-turning.
- Guaranteed accurate to ± 0.00005” TIR or better.
- Precision assembly of three angular contact bearings secured by a lock nut provide exceptional rigidity and accuracy.
- Low-profile head combined with a small bull-nose point makes this an excellent choice for use with tubes or parts with large center holes.
- Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
- Body and point are hardened and ground for strength and long life.
- All Royal Live Centers are proudly Made in U.S.A.
| Live Center Type | Quad-Bearing - Bull Nose Point, High-Precision Quad Bearing |
|---|---|
| Shank Type | Morse Taper |
| Center Type | High-Precision Quad Bearing |
| Center Dimension A (Center Taper) | 3 MT |
| Center Dimension B | 1.70 |
| Center Dimension E | 2.120 |
| Weight of Workpiece (lbs.) | 000750 |
| Center Dimension F | 1.25 |
| Center Dimension G | 1.75 |
| Center Dimension H | 0.75 |
| Max Suggested RPM | 6,000 |
| Thrust Load (lbs.) | 1,270 |
