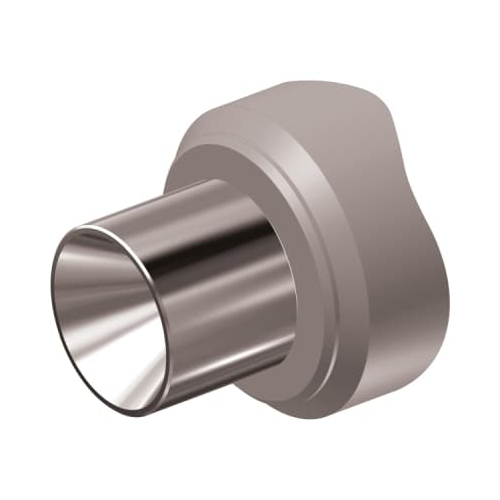

Royal High-Precision Quad-Bearing Live Center
90° Female Point
3 Morse Taper

$1,155.00

In Stock for Same Day Shipping

  • An excellent choice for precision turning, grinding, and hard-turning.
  • Guaranteed accurate to ± 0.00005” TIR or better.
  • Precision assembly of three angular contact bearings secured by a lock nut provide exceptional rigidity and accuracy.
  • Low-profile head combined with a female point with a 90° included angle makes this a great for locating on OD part chamfers.
  • Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
  • Body and point are hardened and ground for strength and long life.
  • All Royal Live Centers are proudly Made in U.S.A.



Center Dimension A (Center Taper) 3 MT
Center Dimension B 1.70
Center Dimension E 2.120
Weight of Workpiece (lbs.) 885
Center Dimension F 1.00
Center Dimension G 1.12
Center Dimension H 0.15 - 1.00
Max Suggested RPM 6,000
Thrust Load (lbs.) 1,270
