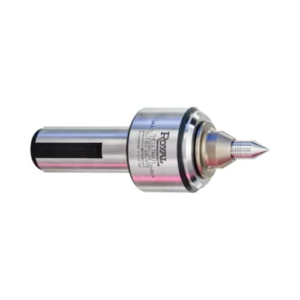

Royal Spring Type Live Center — Standard Point — 1-1⁄4" Straight Shank
Royal Spring Type Live Center — Standard Point — 1-1⁄4" Straight Shank - Image 2

Royal Spring Type Live Center
Standard Point
1-1⁄4" Straight Shank

Part Number: 10527 Category:

$1,160.00

In Stock for Same Day Shipping

  • Unique spring-loaded point compensates for workpiece thermal expansion.
  • Low-profile design provides outstanding tool clearance.
  • Can be used in the turret of sub-spindle machines to overcome a lack of hydraulic compensation.
  • Body and point are hardened and ground for strength and long life.
  • All Royal Live Centers are proudly Made in U.S.A.



Center Dimension A (Center Taper)1 1⁄4″ Dia.
Center Dimension B1.25
Center Dimension F1.38
Weight of Workpiece (lbs.)1,400
Center Dimension G0.63
Spring Travel0.18
Max Suggested RPM4,500
Thrust Load (lbs.)435
