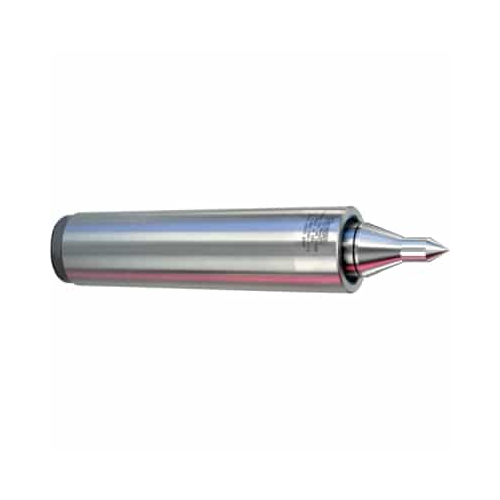

Royal Spring Type Live Center
CNC Point
3 Morse Taper
$1,135.00
In Stock for Same Day Shipping
- Unique spring-loaded point compensates for workpiece thermal expansion.
- Low-profile design provides outstanding tool clearance.
- Can be used in the turret of sub-spindle machines to overcome a lack of hydraulic compensation.
- Body and point are hardened and ground for strength and long life.
- All Royal Live Centers are proudly Made in U.S.A.
| Live Center Type | Spring Type - CNC Point, Spring Type |
|---|---|
| Shank Type | Morse Taper |
| Center Type | Spring Type |
| Center Dimension A (Center Taper) | 3 MT |
| Center Dimension B | 0.94 |
| Center Dimension F | 1.16 |
| Weight of Workpiece (lbs.) | 000260 |
| Center Dimension G | 0.55 |
| Center Dimension H | 0.25 |
| Center Dimension I | 0.47 |
| Spring Travel | 0.14 |
| Max Suggested RPM | 5,000 |
| Thrust Load (lbs.) | 315 |
