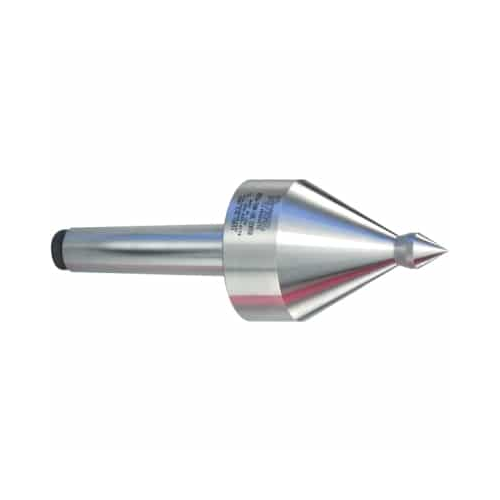

Royal Versa-Turn Live Center
3 MT HD
$776.00
In stock
- An excellent multi-purpose live center designed to handle most common turning jobs.
- The Royal Versa-Turn™ is extremely free turning, making it an ideal choice for thin parts that could bend when subjected to high thrust loads. The unique design is really two centers in one, providing great value for cost-conscious manufacturers.
| Center Dimension A (Center Taper) | 3 MT HD |
|---|---|
| Center Dimension B | 2.50 |
| Center Dimension E | 2.600 |
| Weight of Workpiece (lbs.) | 685 |
| Center Dimension F | 0.93 |
| Center Dimension G | 0.63 |
| Max Suggested RPM | 4,000 |
| Thrust Load (lbs.) | 5,000 |
