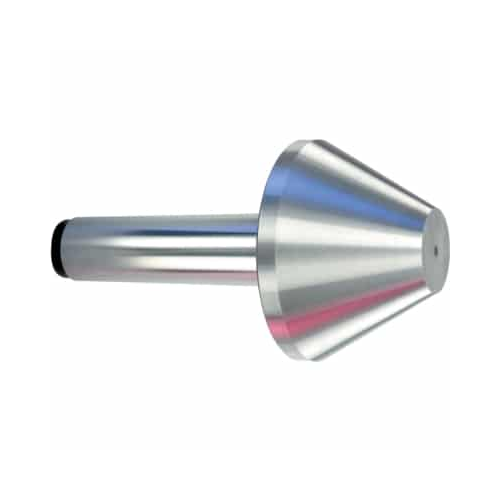

Royal Standard Bull Head Live Center
5 Morse Taper
5-1⁄8" Head Diameter
$1,995.00
In Stock for Same Day Shipping
- Designed for turning pipes, tubes, and parts with extra-large center holes.
- Two matched angular contact bearings provide good thrust and radial load ratings.
- Head diameter is 1⁄8" over nominal size, enabling these centers to cover a wider range of workpieces.
- Bull Head design is shorter than a pipe head, reducing potential interference in blind center hole applications and ensuring that the load is positioned over the bearings for optimum strength.
- Extra large capacity models also available – see Big-Bore Bull Head Live Centers.
- Body and point are hardened and ground for accuracy and durability.
- All Royal Live Centers are proudly Made in U.S.A.
| Center Dimension A (Center Taper) | 5 MT |
|---|---|
| Center Dimension B | 5.15 |
| Center Dimension E | 3.170 |
| Weight of Workpiece (lbs.) | 1,145 |
| Center Dimension G | 2.00 |
| Max Suggested RPM | 4,000 |
| Thrust Load (lbs.) | 3,450 |
