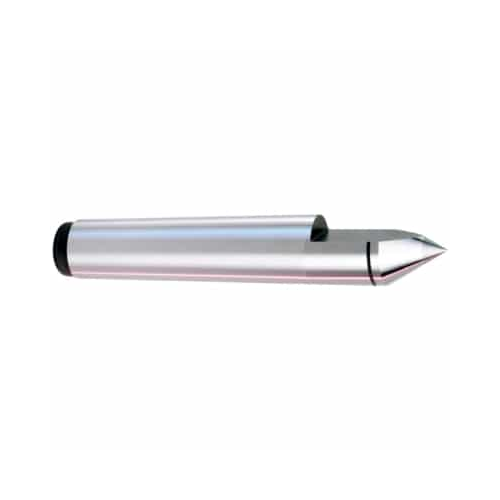

Royal Dead Center — 3 MT 1⁄2 Dead Center with Carbide Tip
- Designed for optimal grinding wheel clearance.
$482.00
In Stock for Same Day Shipping
- Dead centers are typically used for grinding and are also sometimes used in high-precision turning applications.
- Royal manufactures a wide range of standard dead centers to suit most applications, including: full, half, carbide-tipped, and extended-point models.
- All solid dead centers are made from ball bearing steel and are hardened to Rc 61-63 for wear resistance and durability.
- On carbide-tipped models, the carbide blank is brazed into a close-tolerance socket for maximum strength and rigidity.
- All Royal dead centers are ground to an angle of 60° +15'-0 and guaranteed to +/–0.00005" TIR.
| Center Dimension A (Center Taper) | 3 MT |
|---|---|
| Center Dimension B | 5.25 |
| Center Dimension C | 3.19 |
| Center Dimension D | 0.938 |
| Center Dimension E | 0.938 |
| Center Dimension F | 0.50 |
| Center Dimension G | 0.22 |
| Center Dimension H | 1.69 |
