“Oil Country” Bull Head Dead Center Shank — 4 MT Standard Shank
Head not included – View Modular Heads.
$834.00
In Stock for Same Day Shipping
- Designed for turning large tubes and pipes on lathes with live tailstocks.
- Can also be used in large-diameter grinding applications.
- Interchangeable heads (sold separately) offer maximum versatility.
- +/–0.0002" TIR guaranteed.
- Extraction nut (included) allows for easy removal from tailstock.
- Special extended models offered for Mazak** lathes.
| Live Center Type | Bull Head |
|---|---|
| Center Type | Bull Head |

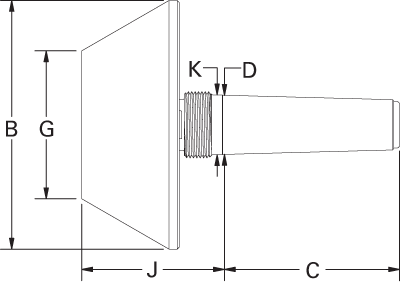

| Center Dimension A (Center Taper) | 4 MT |
| Compatible Lathe Model | Standard |
| Center Dimension C | 4.06 |
| Center Dimension D | 1.231 |
| J With Head A | 4.63 |
| J With Head B-E | 3.91 |
| Drill Chuck Thread | M42 x 1.5 |
