Royal Low-Profile Accu-Length™ CNC Collet Chuck
16C Compact with A2-6 Mount
$7,030.00
In Stock for Same Day Shipping
- These chucks utilize spring-type collets and therefore do not provide the parallel grip functionality or wide gripping range of our Quick-Grip™ models.
- Dead-length operation - sleeve pushes forward to compress the collet, providing precise z-axis part positioning.
- Low-profile nose offers outstanding tool clearance.
- Includes free custom machined connector to fit your exact lathe drawtube specifications.
- In-stock for same-day shipping.
- For lathes with more than 1-3/4" bar capacity, check out our Quick-Grip Collet Chucks with bar capacities up to 4" diameter!
| Spindle Type | A2-6 |
|---|---|
| Collet Chuck Weight (lbs) | 25 |
| Collet Type | 16C |
| Low-Profile Capacity | 1 5⁄8″ |

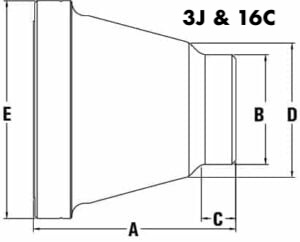

| (A) Overall Length | 6.25 |
| (B) Nose Diameter | 3.25 |
| (C) Nose Length | 1.03 |
| (D) Body Diameter | 3.80 |
| (E) Flange Diameter | 7.45 |
| Max Drawbar Force (lbs) | 5,400 |
| Max Clamping Force (lbs) | 18,300 |
| Max RPM | 6,000 |
