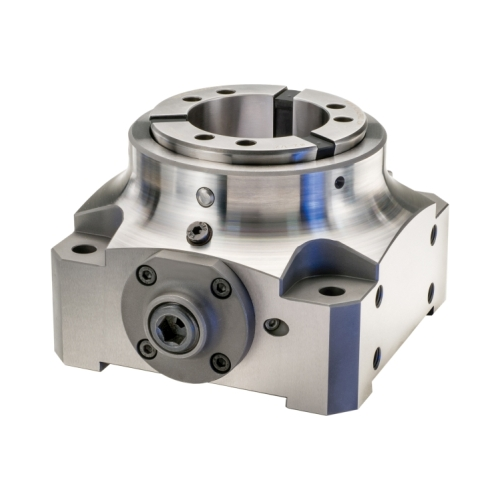

Royal Quick-Grip™ Power-Block Key-Operated Collet Fixture
QG-80
$5,635.00
In Stock for Same Day Shipping
- Unit is actuated via a hybrid mechanical/hydraulic mechanism.
- Can be used in both stationary and rotary table applications. Caution – not for use on lathes or grinders above 5 rpm!
- Many of the same great features as our Quick-Grip™ CNC Collet Chucks, including ten-second collet changes and parallel-grip collets with a full .062" clamping range.
- Pullback design with an internally threaded back plate enables the use of a stop rod.
- Bottom and all four sides are ground for both vertical and horizontal mounting.
- Ideal for high production 4th and 5th axis applications.
- For use with Royal Quick-Grip™ collets and installation tools.
| Collet Model | QG-80 |
|---|---|
| Collet Capacity Round | 3.28 |
| Collet Capacity Square | 2.03 |
| Quick-Grip™ Power-Block Key-Operated Collet Fixtures Dimension A | 4.33 |
| Quick-Grip™ Power-Block Key-Operated Collet Fixtures Dimension B | 6.50 |
| Quick-Grip™ Power-Block Key-Operated Collet Fixtures Dimension C | 5.31 |
| Quick-Grip™ Power-Block Key-Operated Collet Fixtures Dimension D | 5.31 |
| Quick-Grip™ Power-Block Key-Operated Collet Fixtures Dimension E | 0.51 |
| Max Tightening Torque | 57 |
| Max Clamping Force (lbs) | 7,420 |
