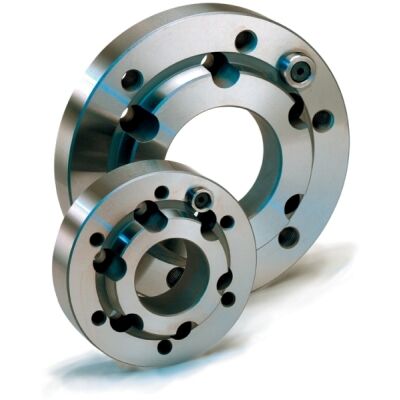

Royal Hardened and Ground Adapter Plates
A2-6 Spindle Mount
A2-8 Chuck Mount

Part Number: 44004 Category:

$2,025.00

In Stock for Same Day Shipping

  • Adapter plates offer the flexibility to mount collet chucks and 3-jaw chucks to a wider range of spindles:
    • Mount a larger chuck on a smaller spindle for increased capacity.
    • Mount a smaller chuck on a larger spindle for increased tool clearance and higher speeds.
  • All Royal adapter plates are hardened to Rc 61-63.
  • High accuracy – 0.0002" TIR guaranteed.
  • Metric screws included for mounting plate to spindle.
  • Drive button included on all plates.
Spindle MountA2-6
Chuck MountA2-8
Adapter Plate Diameter8.68
Adapter Plate Thickness1.00
Thru-Hole Diameter3.75
Spindle Mounting BoltsM-12
Chuck Mount ThreadsM-16
