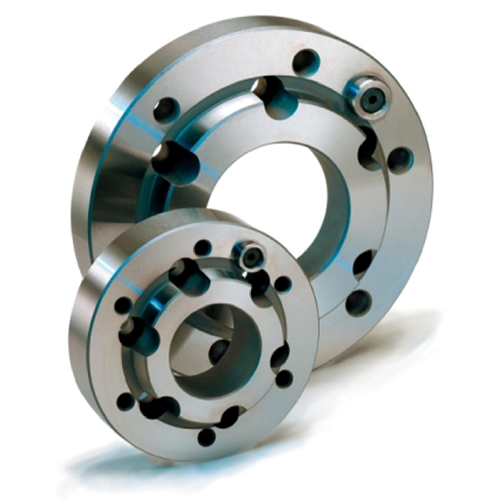

Royal Hardened and Ground Adapter Plates
A2-8 Spindle Mount
A2-6 Chuck Mount
$2,025.00
In Stock for Same Day Shipping
- Adapter plates offer the flexibility to mount collet chucks and 3-jaw chucks to a wider range of spindles:
- Mount a larger chuck on a smaller spindle for increased capacity.
- Mount a smaller chuck on a larger spindle for increased tool clearance and higher speeds.
- All Royal adapter plates are hardened to Rc 61-63.
- High accuracy – 0.0002" TIR guaranteed.
- Metric screws included for mounting plate to spindle.
- Drive button included on all plates.
| Spindle Mount | A2-8 |
|---|---|
| Chuck Mount | A2-6 |
| Adapter Plate Diameter | 8.25 |
| Adapter Plate Thickness | 1.75 |
| Thru-Hole Diameter | 3.44 |
| Spindle Mounting Bolts | M-16 |
| Chuck Mount Threads | M-12 |
