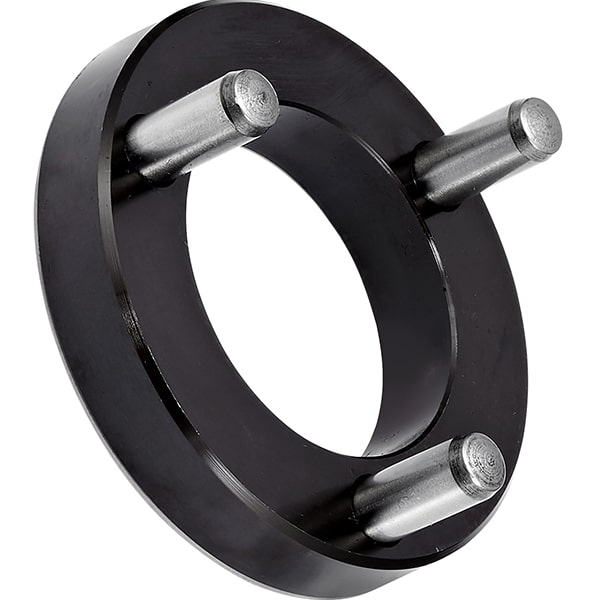

Boring Fixture - QG-42

Boring fixture holds collet segments firmly in-place and puts collet under slight compression to ensure accuracy and roundness during machining.

• The parameters shown represent a sampling of counter-bore possibilities. Other diameter/depth combinations are possible. Please contact Royal with your specific requirements.
• For precise z-axis positioning, best practice is to use a Royal stop.
• Users can counter-bore their own emergency collets, or order to size as hardened and ground specials.
• For a better understanding of counter-bore collets and their use, please contact one of our applications engineers at 1-800-645-4174.

COLLET MODEL	A1	B1	A2	B2
QG-32	1.81	0.22	1.38	0.88
QG-42	2.62	0.28	2.53	0.39
QG-52	2.57	0.28	2.49	0.50
QG-65	3.40	0.28	3.07	0.51
QG-80	4.00	0.28	3.66	0.51
QG-100	5.15	0.28	4.61	0.79
