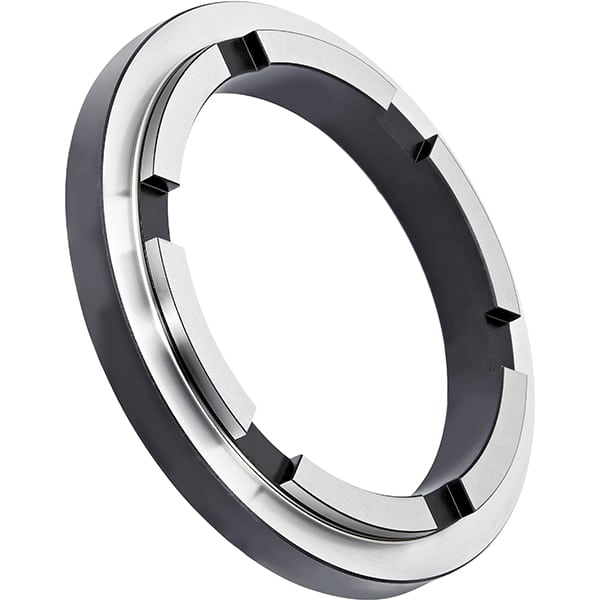

Boring Fixture - QG-100
$620.00
In Stock for Same Day Shipping
Boring fixture holds collet segments firmly in-place and puts collet under slight compression to ensure accuracy and roundness during machining.
- The parameters shown represent a sampling of counter-bore possibilities. Other diameter/depth combinations are possible. Please contact Royal with your specific requirements.
- For precise z-axis positioning, best practice is to use a Royal stop.
- Users can counter-bore their own emergency collets, or order to size as hardened and ground specials.
- For a better understanding of counter-bore collets and their use, please contact one of our applications engineers at 1-800-645-4174.
COLLET MODEL | A1 | B1 | A2 | B2 |
---|---|---|---|---|
QG-32 | 1.81 | 0.22 | 1.38 | 0.88 |
QG-42 | 2.62 | 0.28 | 2.53 | 0.39 |
QG-52 | 2.57 | 0.28 | 2.49 | 0.50 |
QG-65 | 3.40 | 0.28 | 3.07 | 0.51 |
QG-80 | 4.00 | 0.28 | 3.66 | 0.51 |
QG-100 | 5.15 | 0.28 | 4.61 | 0.79 |
Collet Model | QG-100 |
---|
