Royal QG Combo Chuck – 140 mm – QG-52 – Ultra-Compact

Part Number: 65114 Category: Tag:
  • Spindle Nose: 140 mm
  • Collet Type: QG-52
  • Chuck Style: Ultra-Compact

$5,840.00

In Stock for Same Day Shipping

No Need to Ever Change Your Chuck Again

The Royal QG Combo Chuck represents the next generation of our best-selling QG-65 Accu-Length™ CNC Collet Chuck - it’s both a Quick-Grip™ Collet Chuck and an I.D. Workholding System All-in-One!

  • At its core, this is a Quick-Grip™ Accu-Length™ Collet Chuck, and because there is no z-axis movement of the collet or workpiece, the chuck is perfectly suited for both main and sub-spindle applications.
  • The chuck can also be quickly converted to an I.D. workholding system simply by attaching the nose cap and mandrel. Changeover time takes just minutes, and no adjusting of the prox switches is required.
  • For very small diameter work, a 5C collet nose is also available (pullback actuation).

Spindle Nose 140 mm
Collet Type QG-52
Chuck Style Ultra-Compact
Risk-Free Performance Guarantee

Dimensions FAQs

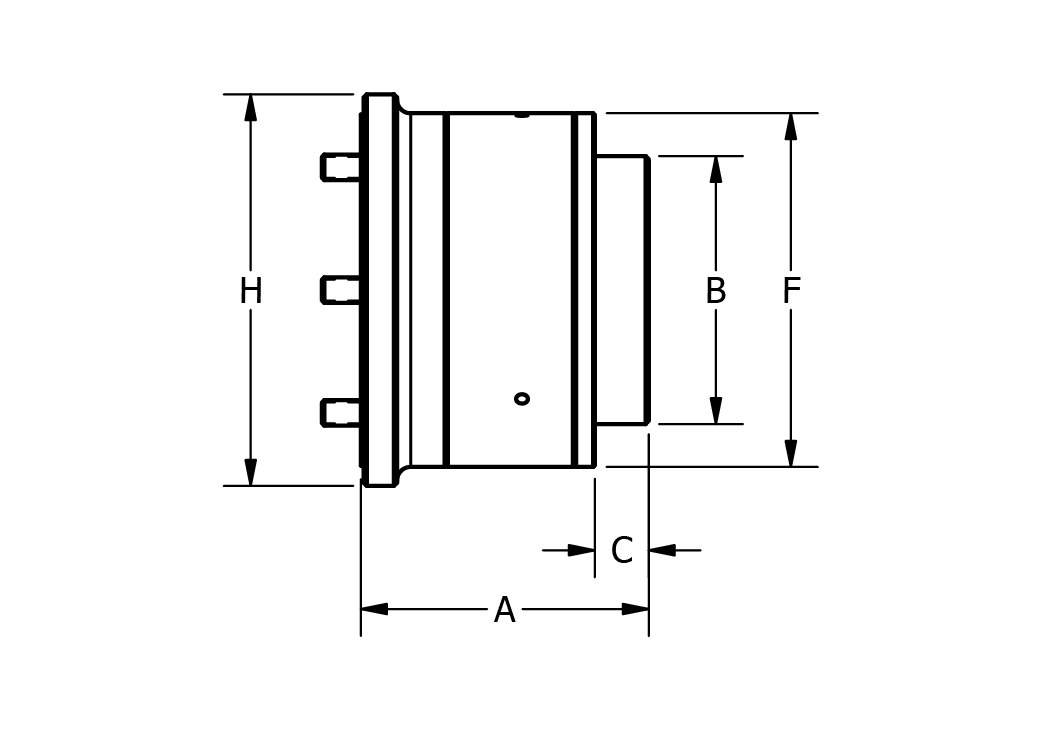

Chuck Diagram
SPINDLE TYPE COLLET TYPE CHUCK STYLE * A B C F H CHUCK
WEIGHT
(lbs.)		 MAX
DRAWBAR FORCE
(lbs.)		 MAX
CLAMPING FORCE
(lbs.)		 MAX
RPM
115 mm QG-52 UC 4.40 4.37 0.87 6.10 6.10 23.90 7,865 17,980 6,000
A2-5 QG-52 C 4.80 4.37 0.87 6.10 6.85 28.00 7,865 17,980 6,000
A2-5 QG-52 UC 4.20 4.37 0.87 6.10 6.10 22.10 7,865 17,980 6,000
A2-6 QG-52 UC 4.60 4.37 0.87 6.20 7.25 26.20 7,865 17,980 6,000
110 mm QG-52 UC 4.20 4.37 0.87 6.10 6.10 23.90 7,865 17,980 6,000
140 mm QG-52 UC 4.20 4.37 0.87 6.10 6.10 23.20 7,865 17,980 6,000
A2-5 QG-65 C 4.80 4.96 1.00 6.55 7.25 29.50 10,115 23,600 6,000
A2-5 QG-65 UC 4.50 4.96 1.00 6.55 6.55 26.50 10,115 23,600 6,000
A2-6 QG-65 C 5.33 4.96 1.00 6.55 7.25 33.50 10,115 23,600 6,000
A2-6 QG-65 UC 4.65 4.96 1.00 6.55 7.25 26.50 10,115 23,600 6,000
A2-6 QG-65 EL 7.00 4.96 1.00 6.55 7.25 47.50 10,115 23,600 6,000
A2-8 QG-65 C 5.50 4.96 1.00 6.55 9.45 47.50 10,115 23,600 6,000
110 mm QG-65 UC 4.45 4.96 1.00 6.55 6.55 27.50 10,115 23,600 6,000
140 mm QG-65 UC 4.80 4.96 1.00 6.55 7.45 31.50 10,115 23,600 6,000
A2-5 QG-80 C 4.95 5.68 1.00 7.45 7.45 40.09 11,240 25,850 5,000
A2-6 QG-80 C 4.95 5.68 1.00 7.45 7.45 39.90 11,240 25,850 5,000
A2-6 QG-80 EL 7.00 5.68 1.00 7.45 7.45 64.18 11,240 25,850 5,000
A2-8 QG-80 C 5.20 5.68 1.00 7.45 7.45 49.58 11,240 25,850 5,000
140 mm QG-80 C 4.95 5.68 1.00 7.45 7.45 40.48 11,240 25,850 5,000

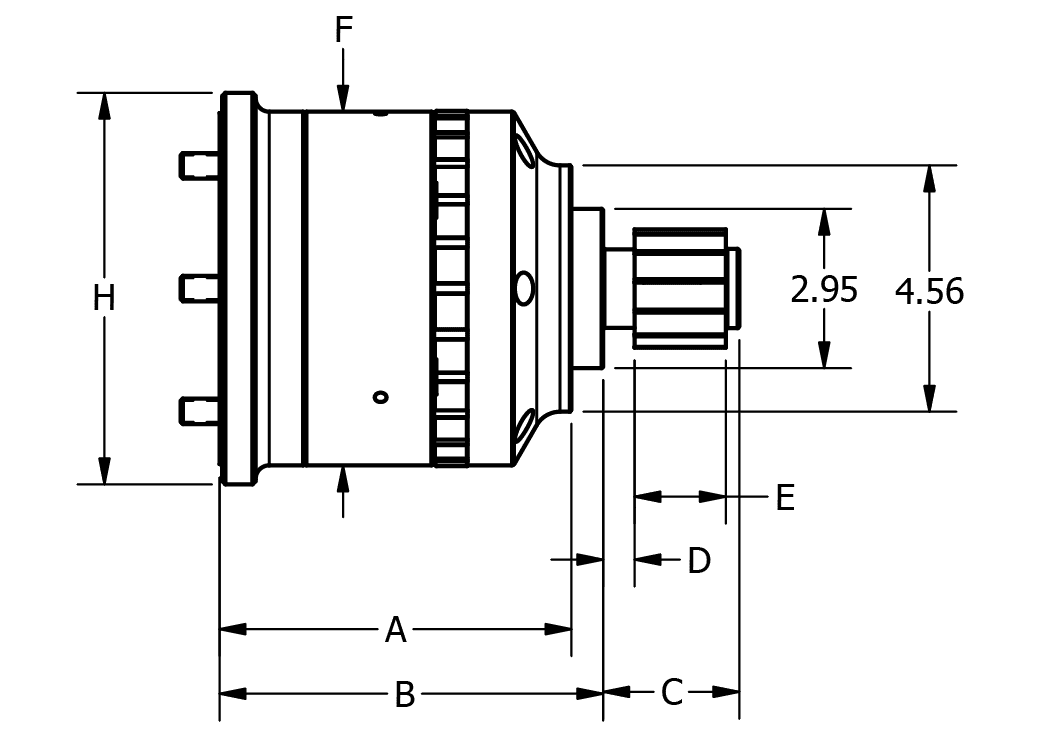

Chuck Diagram
SPINDLE TYPE COLLET TYPE CHUCK STYLE * A B C D E F H UNIT WEIGHT
W/O MANDREL
(lbs.)
115 mm QG-52 UC 5.72 6.30 SEE MANDREL CHART BELOW 6.10 6.10 37.5
A2-5 QG-52 C 6.12 6.70 6.10 6.85 41.63
A2-5 QG-52 UC 5.52 6.10 6.10 6.10 35.71
A2-6 QG-52 UC 5.92 6.51 6.20 7.25 39.75
110 mm QG-52 UC 5.72 6.30 6.10 6.10 37.5
140 mm QG-52 UC 5.72 6.30 6.10 6.10 37.5
A2-5 QG-65 C 5.99 6.57 SEE MANDREL CHART BELOW 6.55 7.25 44.51
A2-5 QG-65 UC 5.69 6.27 6.55 6.55 41.51
A2-6 QG-65 C 6.52 7.10 6.55 7.25 48.51
A2-6 QG-65 UC 5.84 6.43 6.55 7.25 41.51
A2-6 QG-65 EL 8.19 8.77 6.55 7.25 62.51
A2-8 QG-65 C 6.69 7.27 6.55 9.45 62.51
110 mm QG-65 UC 5.64 6.22 6.55 6.55 42.51
140 mm QG-65 UC 5.99 6.57 6.55 7.45 46.51
A2-5 QG-80 C 5.99 6.57 SEE MANDREL CHART BELOW 7.45 7.45 58.92
A2-6 QG-80 C 6.52 7.10 7.45 7.45 58.69
A2-6 QG-80 EL 8.19 8.77 7.45 7.45 83.01
A2-8 QG-80 C 6.69 7.27 7.45 7.45 68.41
140 mm QG-80 C 6.14 6.72 7.45 7.45 59.32

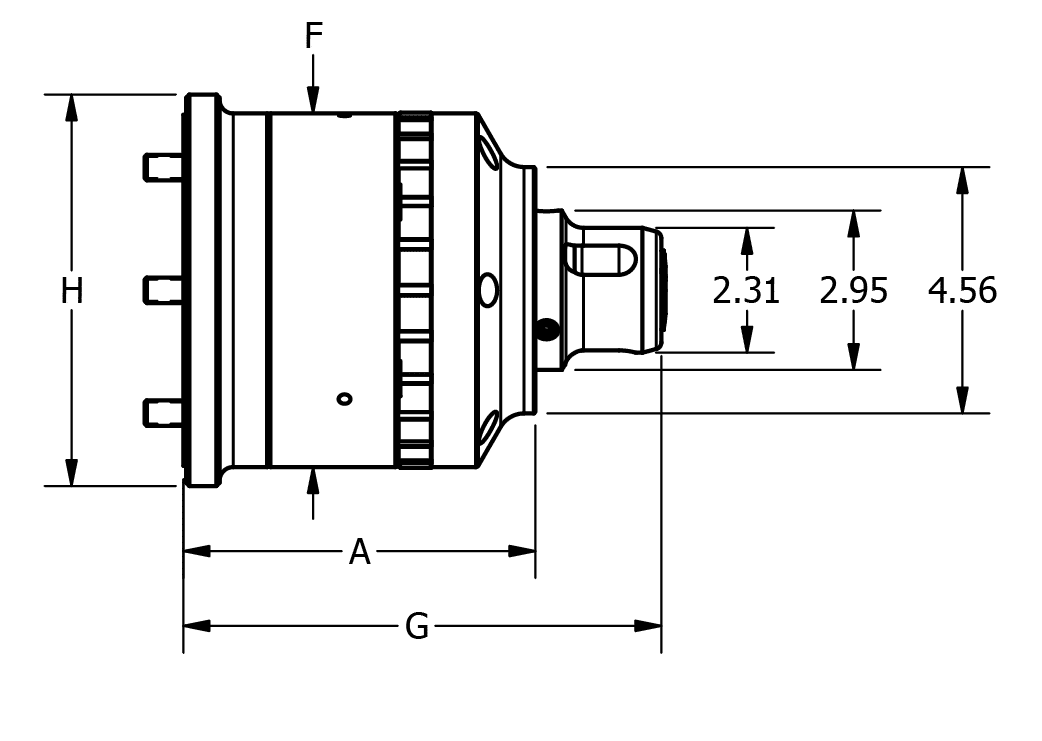

Chuck Diagram
SPINDLE TYPE COLLET TYPE CHUCK STYLE * A F G H UNIT
WEIGHT
(lbs.)
115 mm QG-52 UC 5.72 6.10 8.05 6.10 39.94
A2-5 QG-52 C 6.12 6.10 8.45 6.85 44.07
A2-5 QG-52 UC 5.52 6.10 7.85 6.10 38.15
A2-6 QG-52 UC 5.92 6.20 8.25 7.25 42.19
110 mm QG-52 UC 5.72 6.10 8.05 6.10 39.94
140 mm QG-52 UC 5.72 6.10 8.05 6.10 39.94
A2-5 QG-65 C 5.99 6.55 8.32 7.25 46.95
A2-5 QG-65 UC 5.69 6.55 8.02 6.55 43.95
A2-6 QG-65 C 6.52 6.55 8.85 7.25 50.95
A2-6 QG-65 UC 5.84 6.55 8.17 7.25 43.95
A2-6 QG-65 EL 8.19 6.55 10.52 7.25 64.95
A2-8 QG-65 C 6.69 6.55 9.02 9.45 64.95
110 mm QG-65 UC 5.64 6.55 7.97 6.55 44.95
140 mm QG-65 UC 5.99 6.55 8.32 7.45 48.95
A2-5 QG-80 C 6.14 7.45 8.47 7.45 61.36
A2-6 QG-80 C 6.14 7.45 8.47 7.45 61.13
A2-6 QG-80 EL 6.14 7.45 10.52 7.45 85.45
A2-8 QG-80 C 6.14 7.45 8.72 9.45 70.85
140 mm QG-80 C 6.14 7.45 8.47 7.45 61.76

Customer Comment – “No need to adjust the prox switches because the chuck is always in push mode. It is a real game-changer!”

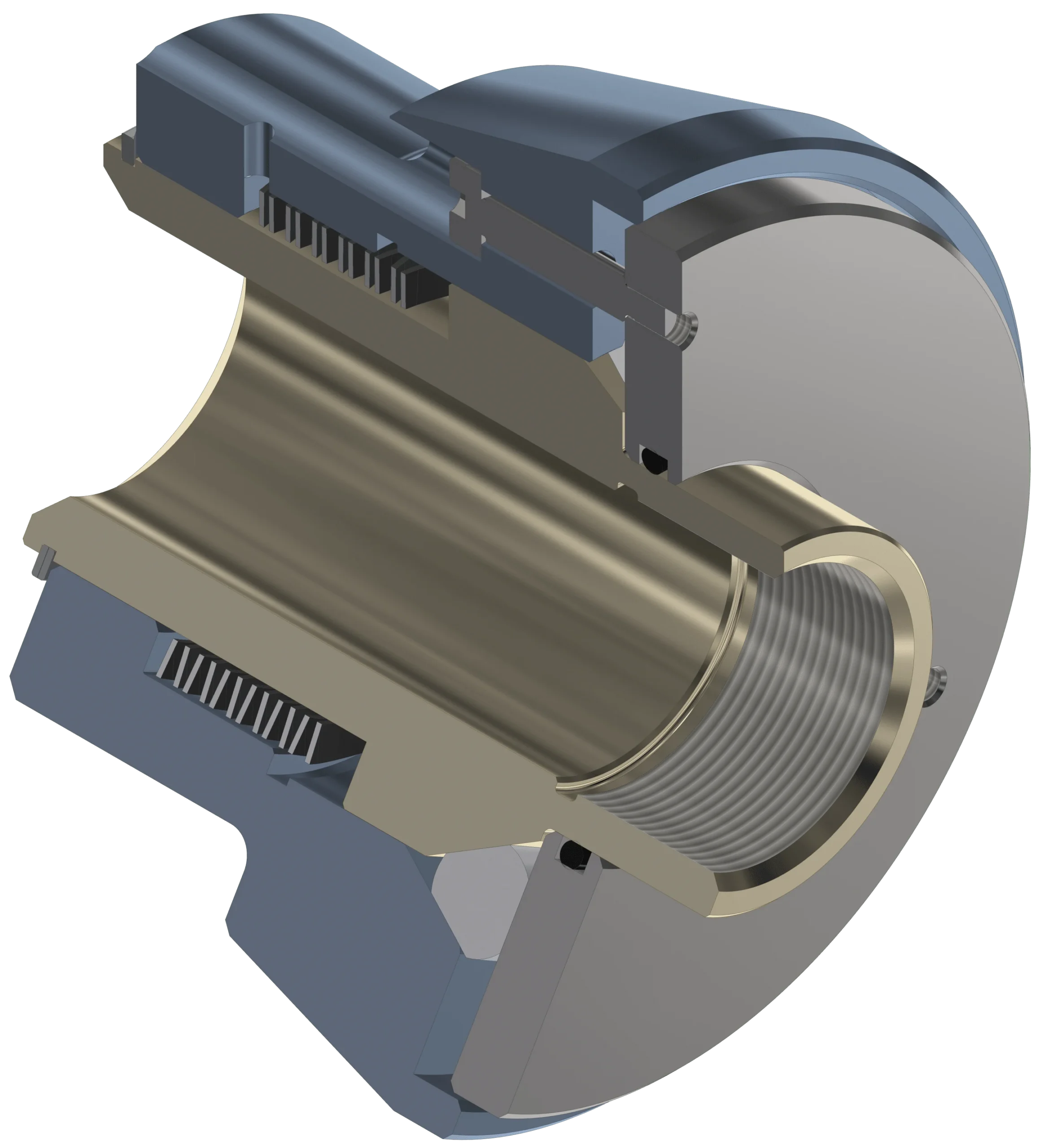

How It Works





To maintain precise z-axis positioning of the workpiece, the collet in a Royal Accu-Length” Collet Chuck is fixed to the body and the chuck’s closing sleeve pushes forward over the collet to compress it. The collet, and therefore the workpiece, remains fixed in the z-position.

With our I.D.Workholding System, the mandrel is fixed to the chuck body and a tapered pin is pulled back into the sleeve to expand it.

The Royal QG Combo Chuck uses a clever motion reversal adapter that converts the push-forward action of the closing sleeve to pullback motion that actuates the I.D. system via a series of hardened wedges. Simple, effective, and extremely durable!

Note– Actuator pressure may need to be adjusted to achieve optimal clamping force.

Accu-Length™ Operation – A Very Important Royal Advantage!

Unlike other combination chucks that are based upon a pullback collet design, the Royal QG Combo Chuck is modeled on our Accu-Length™ design, ensuring precise part transfers from main to sub with no risk of z-axis part movement. This makes the Royal QG Combo chuck a much better solution for sub-spindle applications compared to the pullback models offered by others.

Lightning-Fast Collet Changes
Changning collets on a Royal Quick-Grip™ collet chuck takes just a few seconds. A unique hook and groove design for securing the collet is used instead of traditional threads.

Widest Collet Gripping Range
With a gripping range of 0.062” per collet, you don’t need to worry if your stock is off-size.

Widest Collet Gripping Range
With a gripping range of 0.062” per collet, you don’t need to worry if your stock is off-size.

Heavy-Duty Construction
All chuck components, except for the drawtube connector, are hardened to Rc 61-63 for high rigidity and durability.

Accu-Length™ Design – A Very Important Royal Advantage
Unlike other combination chucks that are based upon a pullback collet design, the Royal QG Combo Chuck is based on our Accu-Length™ design, ensuring precise part transfers from main to sub with no risk of z-axis part movement. This makes the Royal QG Combo chuck a much better solution for sub-spindle applications compared to the pullback models offered by others.

An included anodized aluminum ring protects the precision locating taper from chip exposure when using as a conventional collet chuck.

Extreme Accuracy
Like all Royal QG Collet Chucks, accuracy is guaranteed to be within 0.0002” TIR when being used as a collet chuck, and the I.D mandrel can be dialed in to almost absolute zero when being used as an I.D. system.

Bolt and Go™
The special nose cap that houses the ID mandrel is based upon a precision face/taper interface to ensure near-perfect repeatability during changeovers. The mounting taper is located on the back side of the nose and is protected from chips by an aluminum ring when the I.D. system is not being used.

Simple Installation
All Royal QG Collet Chucks include a custom-machined drawtube connector and all mounting hardware for hasslefree installation.

Coolant Slinger
The chuck body incorporates an oversized flange to protect the machine tool spindle bearings from coolant penetration.

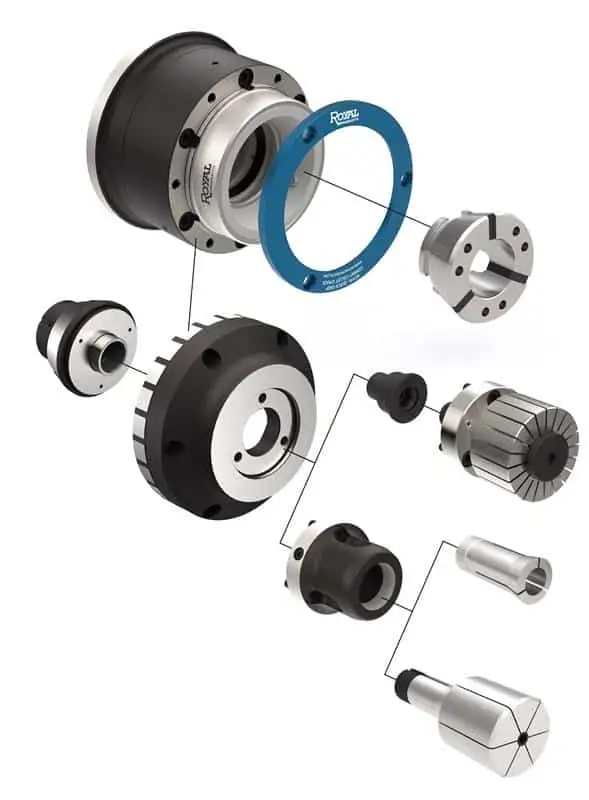

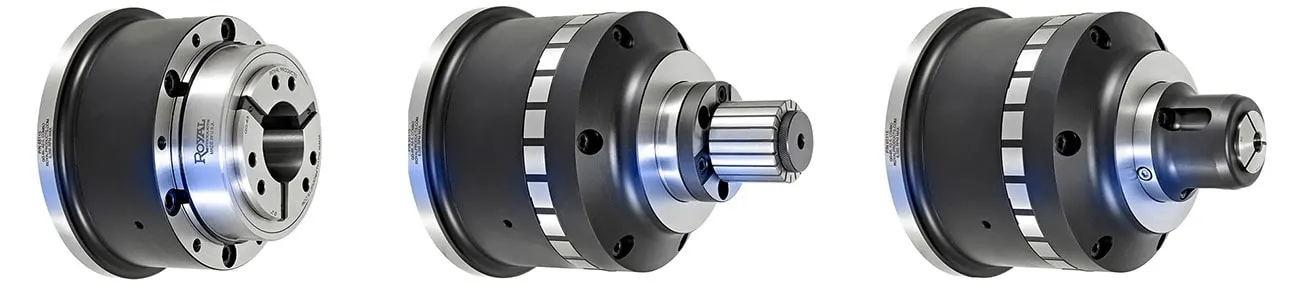

Flexibility for Today's Jobs and Tomorrow's!

By choosing the Royal OG Combo Chuck, you’re minimizing changeover time between jobs and guaranteeing yourself tremendous flexibility.

The OG Combo Chuck operates exactly as a standard Royal OG Accu-Length™ Collet Chuck does, while offering a ton of additional functionality.

To add I.D. or 5C capabilities, simply install the nose cap and push/pull adapter (sold separately) and affix Royal’s I.D. madrels/sleeves or our 5C collet adapter.

The chuck body never needs to be removed from the lathe spindle, so changing between jobs is fast, easy, and safe.

  • Available in Models QG-52, 65, and 80
  • All Models In Stock for Same-Daty Shipping
