Royal SLV™ Self-Centering Vise – SLV 75-125
SLV 75-125
$1,470.00
In Stock for Same Day Shipping
Superior Design
Outstanding performance over other self-centering vises is achieved through a combination of several unique design elements:
- Extremely rigid one-piece jaw design is modeled after a CNC box way to minimize deflection through captive, multi-plane contact. Jaw lift is virtually non-existent.
- The massive drive spindle is elevated to apply the clamping force much closer to the workpiece compared to other vises.
- The hardened vise body is machined from a proprietary tool steel for maximum strength and rigidity.

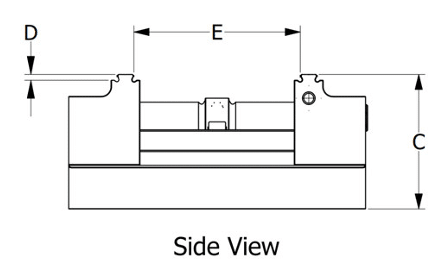

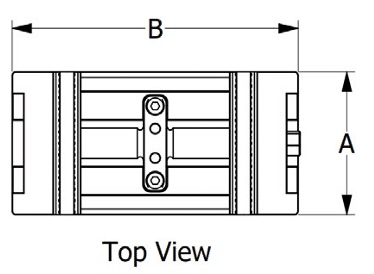

| SLV™ Vise Model | SLV 75-125 |
|---|---|
| Body/Jaw Width | 2.95 |
| Body Length | 4.92 |
| Height with Standard Jaws | 2.68 |
| Clamping Depth with Standard Jaws | 0.11 |
| Min/Max Clamping Range | 0.24-4.01 |
| Max Tightening Torque (ft-lbs.) | 52 |
| Max Clamping Force (lbs.) | 3,600 |
| Weight with Standard Jaws (lbs.) | 8 |
Incredible Grip Force
The Royal SLV™ Self-Centering Vise has been optimized to deliver tremendous grip force and rigidity in a very compact package. This is one Sturdy Little Vise!
Never Needs Realignment
The central guide bushing is both pinned and bolted to the vise body to maintain perfect alignment and eliminate any need for readjustment.
Multiple Jaw Options
All Royal Sturdy Little Vises come equipped with a set of standard-grip jaws. Additional jaw models are available for more specialized applications.
No More Cutting Dovetails
The Royal SLV™ securely grips workpieces at a depth of as little as 3mm (1/8”), reducing scrap and eliminating the need to cut dovetails or emboss the workpiece contact surface.
Compatible with Many Zero-Point Receivers
The Royal SLV™ is also configured to accept the mounting studs of many zero-point systems based on common 52 and 96mm bolt patterns (see compatibility chart).
Precision Repeatability
0.0006” or better repeatability – guaranteed.
Great for 5-Axis
Mounting pyramids available for multivise setups – especially useful in five-axis applications
Reduced Chip Buildup
Shallow throat depth allows for easy and complete chip blowoff.
Same-Day Shipping
All vises, jaw sets, and pyramids are in stock for same-day shipping.
