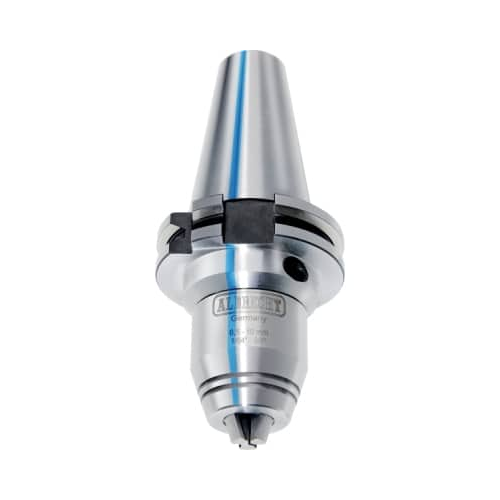

Albrecht Key-Lock CNC Drill Chuck
KL160-CAT50 with 1/32" to 5/8" Capacity
$1,098.00
In Stock for Same Day Shipping
- New, compact design provides increased capacity and better clearance.
- Extremely accurate – Albrecht Key-Lock Drill Chucks are the most accurate drill chucks available.
- Unique worm/gear arrangement is similar to the Überchuck and transmits extremely high gripping force to the jaws.
- Short length and integral shank provide exceptional rigidity.
- Thru-coolant feature is standard on all Albrecht Key-Lock Drill Chucks.
- Non-rotating hood – chuck is opened and closed via a hex key inserted into the side of the body.
- Balanced to G2.5 @ 20,000 rpm for use on all CNC machines.
- Can be operated in both clockwise and counterclockwise directions.
- The key-operated worm and gear assembly generates Very high grip force and ensures that the chuck can’t loosen during operation because a worm can drive a gear, but a gear cannot drive a worm.
| Chuck Model | KL160-CAT50 |
|---|---|
| Drill Chuck Capacity (in) | 1⁄32 - 5⁄8 |
| Drill Chuck Capacity (mm) | 1 - 16 |
| Taper | CAT 50 |
| Drill Chuck Dimension A | 3.31 |
| Drill Chuck Dimension L1 | 3.78 |
| Drill Chuck Dimension L2 | 1.93 |
| Drill Chuck Dimension D1 | 1.97 |
| Drill Chuck Dimension D2 | 2.76 |
| Drill Chuck Model | KL160-CAT50 |
| Drill Chuck Weight | 7.9 |
