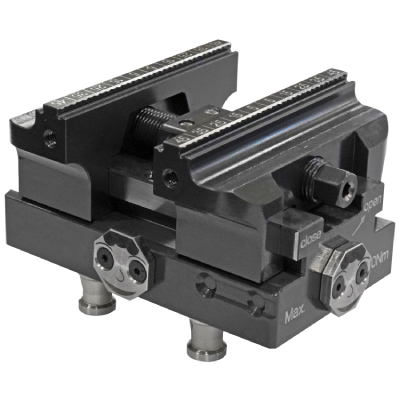

Royal SLV™ Automation Self-Centering Vise – SLV 77-125
$1,565.00
In Stock for Same Day Shipping
- Royal brings unprecedented part clamping to robotic load/unload applications with the new SLV™ Automation Vise.
- Same great design features as our standard SLV™ Self Centering Vises, but with the following additional automation elements:
- Ability to mount a gripping cleat on either the short or long side of the vise body – provides flexibility and increases staging density for multi-vise automation systems.
- Slots with dimples provide an alternative fixed datum for robot/cobot gripper engagement.
- Body is 77mm wide and uses standard 75mm jaws for robot gripper clearance (Note – custom "wide-grip" jaws shown).
| SLV™ Vise Model | SLV 77-125 |
|---|---|
| (A) Body Width (in) | 3.94" |
| (B) Body Length (in) | 4.92" |
| (C) Height w/ Standard Jaws (in) | 2.68" |
| (D) Clamping Depth w/ Standard Jaws (in) | 0.11" |
| (E) Minimum Clamping Range (in) | 0.24" |
| (E) Maximum Clamping Range (in) | 4.01" |
| Maximum Tightening Torque (ft-lbs) | 52 ft-lbs |
| Maximum Clamping Force (lbs) | 3600 lbs |
| Weight w/ Standard Jaws (lbs) | 8 lbs |
