Royal 5C, 16C and 3J Key-Operated Collet Fixtures

Royal Quick-Grip™ Power-Block™ Hydraulic Collet Fixture

  • Opened and closed via an internal cam mechanism.
  • Accu-Length™ operation – collet and workpiece position remains fixed for precise length control.
  • Can be used in both stationary and rotary table applications.
    Caution – not for use on lathes or grinders above 5 rpm!
  • Special model 62004 bolts directly to Haas HRT-100 and HRT-110* and other small indexers.
    Note – cam bolt is recessed on this model.
  • All other models configured for both four and six-slot mounting – 4.125″ bolt circle diameter.
  • All models include cam wrench.
Type 1
Royal 5C/16C/3J Manual Collet Fixture Sizing Schematic
Type 2

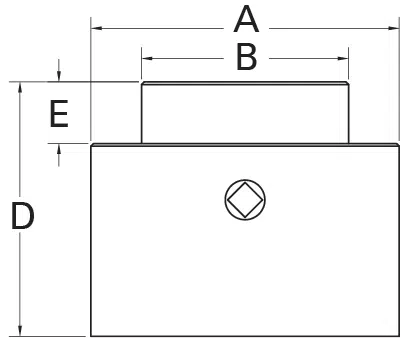

Royal 5C/16C/3J Manual Collet Fixture Sizing Schematic Type 2

Royal 5C, 16C and 3J Key-Operated Collet Fixtures

Filters Sort results
Reset Apply
Collet
Model
Collet
Capacity
Type
A
B
C
D
E
F
PART NUMBER
PRICE
5C
1 1⁄16"
Type 1
3.37
2.50
4.95
3.50
1.15
0.75
62002
$1,635.00
Max:
Min: 0
Step: 1
Add
5C (for HRT-100 & 110)*
1 1⁄16"
Type 2
4.20
2.50
-
3.50
1.15
-
62004
$1,635.00
Max:
Min: 0
Step: 1
Add
3J
1 3⁄4"
Type 2
4.95
3.35
-
4.13
1.00
-
62008
$2,140.00
Max:
Min: 0
Step: 1
Add
16C
1 5⁄8
Type 2
4.95
3.35
-
4.63
1.50
-
62006
$2,140.00
Max:
Min: 0
Step: 1
Add
