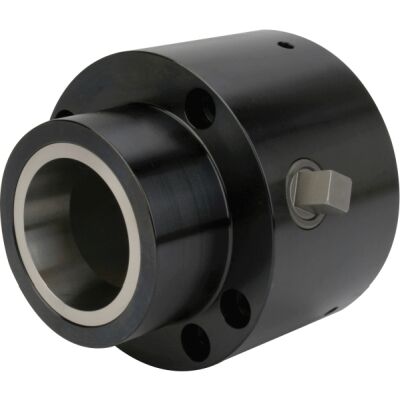

Royal 5C/16C/3J Manual Collet Fixture

5C Manual Collet Fixture (for HRT-100 & 110)

$1,090.00

Part Number: 62004 Category:

In stock

  • Opened and closed via an internal cam mechanism.
  • Accu-Length™ operation – collet and workpiece position remains fixed for precise length control.
  • Can be used in both stationary and rotary table applications.
    Caution – not for use on lathes or grinders above 5 rpm!
  • Special model 62004 bolts directly to Haas HRT-100 and HRT 110* and other small indexers.
    Note – cam bolt is recessed on this model.
  • All other models configured for both four and six-slot mounting – 4.125" bolt circle diameter.
  • All models include cam wrench.
Collet Model 5C (for HRT-100 & 110)
Collet Capacity 1 1⁄16"
Manual Collet Fixture Type Type 2
Manual Collet Fixture Dimension A 4.20
Manual Collet Fixture Dimension B 2.50
Manual Collet Fixture Dimension D 3.50
Manual Collet Fixture Dimension E 1.15
