Royal Dead Centers
- Dead centers are typically used for grinding and are also sometimes used in high-precision turning applications.
- Royal manufactures a wide range of standard dead centers to suit most applications, including: full, half, carbide-tipped, and extended-point models.
- All solid dead centers are made from ball bearing steel and are hardened to Rc 61-63 for wear resistance and durability.
- On carbide-tipped models, the carbide blank is brazed into a close-tolerance socket for maximum strength and rigidity.
- All Royal dead centers are ground to an angle of 60° +15′-0 and guaranteed to +/–0.00005″ TIR.

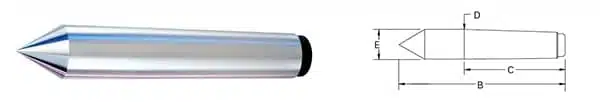

Royal Standard Point Dead Centers

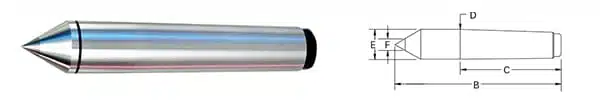

Royal Carbide-Tipped Dead Centers
- Carbide blank is brazed into a close-tolerance socket for maximum strength and rigidity.
Filters Sort results
Reset Apply
Center Taper | Overall Length (B) | Shank Length (C) | Shank Diameter (D) | Point Diameter (E) | Carbide Tip Diameter (F) | PART NUMBER | PRICE | |
|---|---|---|---|---|---|---|---|---|
| 2 MT | 4.19 | 2.56 | 0.700 | 0.700 | 0.38 | $315.00 | ||
| 3 MT | 5.25 | 3.19 | 0.938 | 0.938 | 0.50 | $427.00 | ||
| 4 MT | 6.75 | 4.06 | 1.231 | 1.231 | 0.50 | $558.00 | ||
| 5 MT | 8.50 | 5.19 | 1.748 | 1.748 | 0.63 | $868.00 |

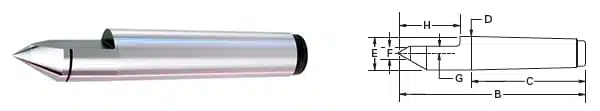

Royal Carbide-Tipped Half Dead Centers
- Designed for optimal grinding wheel clearance.
Filters Sort results
Reset Apply
Center Taper | Overall Length (B) | Shank Length (C) | Shank Diameter (D) | E | Carbide Tip Diameter (F) | Grinding Wheel Clearance (G) | Grinding Wheel Clearance (H) | PART NUMBER | PRICE | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 MT | 4.19 | 2.56 | 0.700 | 0.700 | 0.38 | 0.19 | 1.38 | $367.00 | ||
| 3 MT | 5.25 | 3.19 | 0.938 | 0.938 | 0.50 | 0.22 | 1.69 | $482.00 | ||
| 4 MT | 6.75 | 4.06 | 1.231 | 1.231 | 0.50 | 0.25 | 2.25 | $615.00 | ||
| 5 MT | 8.50 | 5.19 | 1.748 | 1.748 | 0.63 | 0.38 | 2.75 | $913.00 |
