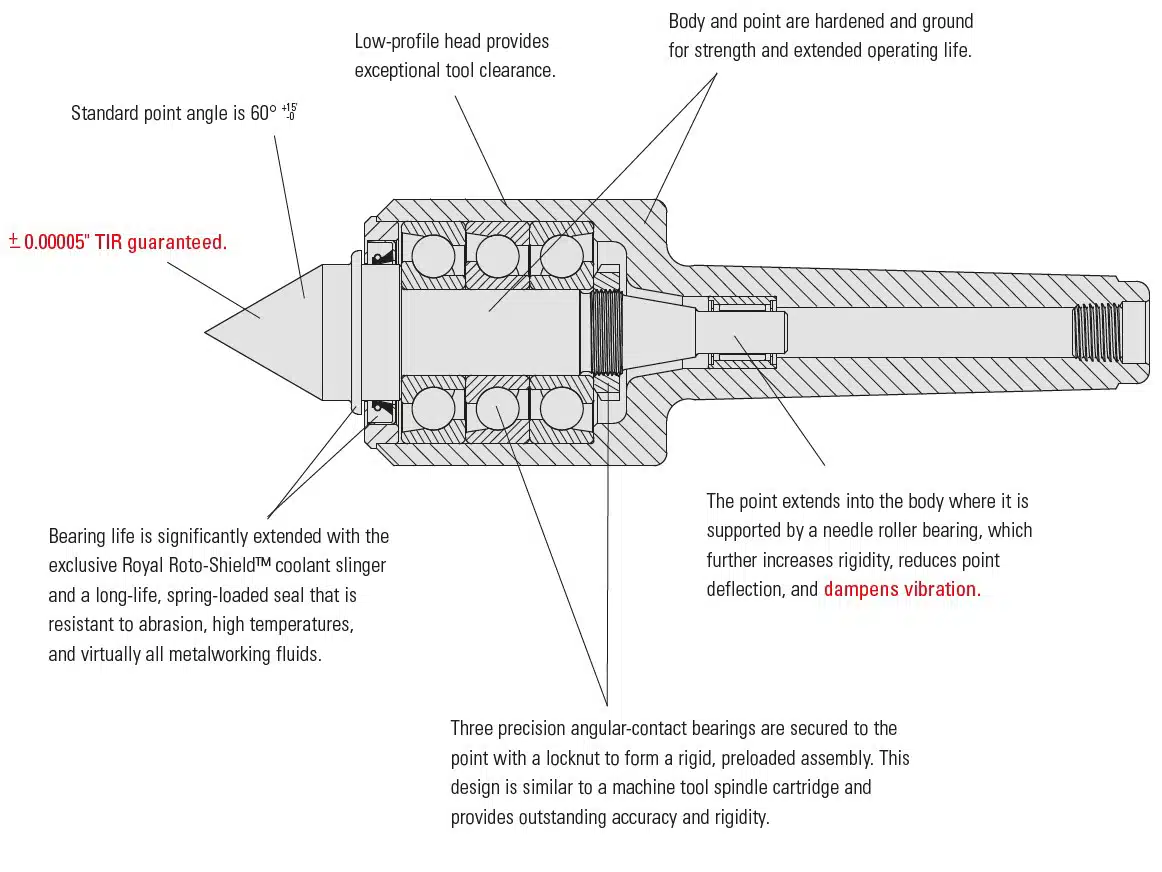

Royal High-Precision Quad-Bearing Live Centers

  • An excellent choice for precision turning, grinding, and hard-turning.
  • Precision, preloaded bearing assembly provides exceptional rigidity and accuracy.
  • Low-profile head offers superior tool clearance.
  • Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
  • Body and point are hardened and ground for strength and long life.
Royal Heavy-Duty Spindle Type Live Center
High-Pressure Coolant Approved
Heavy-Duty CNC Spindle Type Live Center Sizing Schematic
Proudly Made In USA

Royal High-Precision Quad-Bearing Live Centers – Standard Point

Filters Sort results
Reset Apply
Taper
B
E
F
G
MAX.
SUGGESTED
RPM*
WEIGHT OF
WORKPIECE
(lbs.)
THRUST
LOAD (lbs.)
PART NUMBER
PRICE
2 MT
1.70
2.120
1.07
0.88
6,000
885
1,270
10412
$997.00
Max:
Min: 0
Step: 1
Add
3 MT
1.70
2.120
1.07
0.88
6,000
885
1,270
10413
$997.00
Max:
Min: 0
Step: 1
Add
4 MT
2.45
2.780
1.47
1.25
5,000
2,240
2,150
10414
$1,190.00
Max:
Min: 0
Step: 1
Add
5 MT
2.45
2.780
1.47
1.25
5,000
2,240
2,150
10415
$1,250.00
Max:
Min: 0
Step: 1
Add
5 MT HD
3.82
3.890
2.31
2.00
3,000
5,240
5,300
10445
$2,510.00
Max:
Min: 0
Step: 1
Add
6 MT HD
3.82
3.890
2.31
2.00
3,000
5,240
5,300
10446
$3,080.00
Max:
Min: 0
Step: 1
Add

* Maximum recommended operating limit. Operating above this speed could result in heat build-up and accelerated bearing wear.

Insist on Roto-Shield™ Technology – Only Available on Royal Live Centers
