Royal Low-Profile CNC Collet Chuck Accessories

Royal Ejectors for Low-Profile Collet Chucks

Royal Ejector for Low-Profile Collet Chuck
  • Ejectors are used in sub-spindle applications with Accu-Length™ Chucks to push finished workpieces into the part catcher upon completion.
  • Spring is encased inside of body for protection.
  • A hardened plunger rod and a bronze bearing work together to provide smooth, consistent operation.

Royal Ejectors for Low-Profile Collet Chucks

Royal Ejectors for
Low-Profile Collet Chucks

Filters Sort results
Reset Apply
FITS ACCU-LENGTH™
CHUCK MODEL
PART NUMBER
PRICE
5C
Accu-Length™
45145
$505
16C
Accu-Length™
45146
$557
3J
Accu-Length™
45147
$557

For an alternative solution to an ejector, check out the Royal Grippex Coolant-Actuated Bar Puller. The Grippex, when fitted with special jaws, can be used to pull finished parts from a sub-spindle, eliminating the need for an ejector and freeing up the spindle bore to swallow longer parts.

Royal Collet Stops for Low-Profile Collet Chucks

Royal Ejector for Low-Profile Collet Chuck
  • A collet stop is used for accurate z-axis positioning of short workpieces within a collet.
  • Stop rod length is easily adjusted.
  • Assembly screws directly into rear of collet.

Royal Collet Stops for Low-Profile Collet Chucks

Royal Ejectors for
Low-Profile Collet Chucks

Filters Sort results
Reset Apply
FITS ACCU-LENGTH™
CHUCK MODEL
PART NUMBER
PRICE
5C
Accu-Length™ and Pullback
20030
$22
16C
Accu-Length™ and Pullback
45151
$222
3J
Accu-Length™ and Pullback
45152
$222

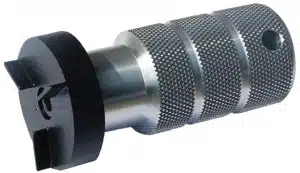

Royal Heavy-Duty Collet Wrenches

  • Heavy-duty one-piece head – pins won’t shear off.
  • Comfortable knurled handle offers superior grip and makes collet installation a breeze.
  • Cross-drilled hole in handle allows a screwdriver to be used as a lever for hard-to-remove collets.

Royal Heavy-Duty Collet Wrenches

Royal Ejectors for
Low-Profile Collet Chucks

Filters Sort results
Reset Apply
COLLET
STYLE
NUMBER OF
COLLET SLOTS
PART NUMBER
PRICE
5C
3
$150
16C
/
3J
3
$150
16C
/
3J
4
$150
