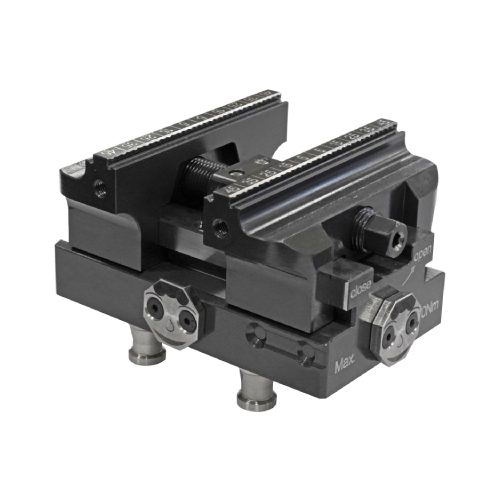

Royal SLV™ Self-Centering Vises
SLV™ ➨ Sturdy Little Vise
Superior Design
Outstanding performance over other self-centering vises is achieved through a combination of several unique design elements:
- Extremely rigid one-piece jaw design is modeled after a CNC box way to minimize deflection through captive, multi-plane contact. Jaw lift is virtually non-existent.
- The massive drive spindle is elevated to apply the clamping force much closer to the workpiece compared to other vises.
- The hardened vise body is machined from a proprietary tool steel for maximum strength and rigidity.
The Royal SLV™ Self-Centering Vise has been optimized to deliver tremendous grip force and rigidity in a very compact package. This is one Sturdy Little Vise!
The central guide bushing is both pinned and bolted to the vise body to maintain perfect alignment and eliminate any need for readjustment.
Multiple Jaw Options
All Royal Sturdy Little Vises come equipped with a set of standard-grip jaws. Additional jaw models are available for more specialized applications.
Direct Integration with Royal Z-Lock™
The Royal SLV™ is the perfect complement to our Z-Lock™ Zero-Point Workholding System – each SLV™ vise contains a central tapped hole to accept our heavy-duty Z-Lock™ positioning stud.
No More Cutting Dovetails
The Royal SLV™ securely grips workpieces at a depth of as little as 3mm (1/8”), reducing scrap and eliminating the need to cut dovetails or emboss the workpiece contact surface.
Compatible with Many Zero-Point Receivers
The Royal SLV™ is also configured to accept the mounting studs of other zero-point systems based on common 52 and 96mm bolt patterns (see compatibility chart).
Precision Repeatability
0.0006” or better repeatability – guaranteed.
Great for 5-Axis
Mounting pyramids available for multivise setups – especially useful in five-axis applications
Reduced Chip Buildup
Shallow throat depth allows for easy and complete chip blowoff.
Same-Day Shipping
All vises, jaw sets, and pyramids are in stock for same-day shipping.
Never Let Your Workholding be the Limiting Factor in Your Machining Processes –
Achieve Super Aggressive Chip Removal with the Royal Sturdy Little Vise!

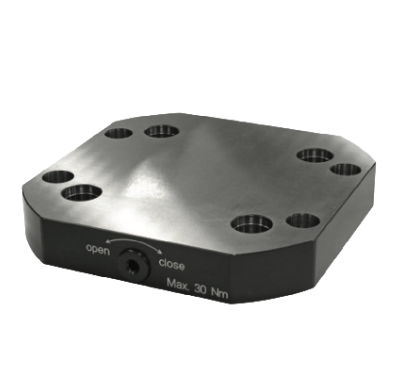

UNIVERSAL ZERO-POINT RECEIVER COMPATIBILITY
- Royal SLV™ Vises have been designed for compatibility with many popular zero-point quick-change receivers.
- If you don’t already own a zero-point system, it’s hard to beat the Royal Z-Lock™ in terms of accuracy, rigidity, and cost. See full catalog for details.
- If you’ve already standardized on a zero-point system that utilizes 52 or 96mm square mounting patterns, you can still upgrade your vises to the Royal SLV™ and enjoy increased performance, productivity, and profits. Simply screw your studs right into the hardened vise base. See receiver compatibility chart below.
Zero-Point Mounting Compatibility
SLV™ Vise Model | Royal Z-Lock™ (M12x1.75 Stud) | 52mm Square Pattern (M8x1.25 Studs) | 96mm Square Pattern (M10x1.5 Studs) |
---|---|---|---|
SLV 54-70 | NO | NO | NO |
SLV 75-125 | YES | YES | NO |
SLV 75-150 | YES | YES | NO |
SLV 125-180 | YES | YES | YES |
SLV 125-230 | YES | YES | YES |

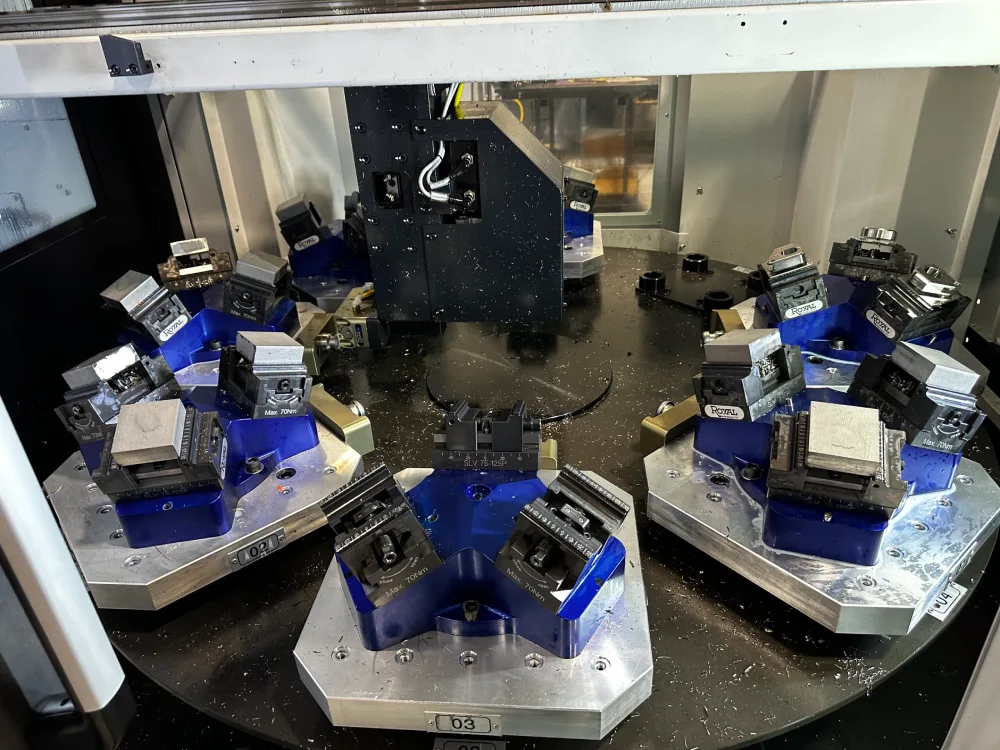

MULTI-VISE PYRAMIDS OPTIMIZE 5-AXIS PRODUCTION
Royal SLV™ Multi-Vise Pyramids
- With Royal Multi-Vise Pyramids, you can take advantage of 5-axis flexibility and increase throughput by machining several parts in a single setup.
- Model 66051 is made from aluminum, includes three SLV™ 54-70 vises, and is machined to accept three additional 54-70 vises (sold separately).
- Model 66052 is made from hardened steel and includes three SLV 75-125 vises.
- All vises are supplied with standard jaws.
- Removable lifting ring supplied for installation ease.
VISE MODELS FOR ALL APPLICATIONS
Royal SLV™ Self-Centering Vises
SLV™ Vise Model | A Body/Jaw Width | B Body Length | C Height with Standard Jaws | D Clamping Depth with Standard Jaws | E Min/Max Clamping Range | Max Tightening Torque (ft-lbs.) | Max Clamping Force (lbs.) | Weight with Standard Jaws (lbs.) | PART NUMBER | Price** | |
---|---|---|---|---|---|---|---|---|---|---|---|
SLV 54-70 | 2.13/1.57* | 2.76 | 1.77 | 0.11 | 0.24-1.74 | 29 | 2,250 | 2 | $1,065.00 | ||
SLV 75-125 | 2.95 | 4.92 | 2.68 | 0.11 | 0.24-3.00 | 52 | 3,600 | 8 | $1,285.00 | ||
SLV 75-150 | 2.95 | 5.91 | 2.68 | 0.11 | 0.24-3.98 | 52 | 3,600 | 9 | $1,330.00 | ||
SLV 125-180 | 4.92 | 7.09 | 3.62 | 0.11 | 0.24-4.33 | 73 | 5,850 | 26 | $2,385.00 | ||
SLV 125-230 | 4.92 | 9.06 | 3.62 | 0.11 | 0.24-6.30 | 73 | 5,850 | 31 | $2,560.00 |
** Price includes one set of standard jaws
VISE MODELS FOR ALL APPLICATIONS

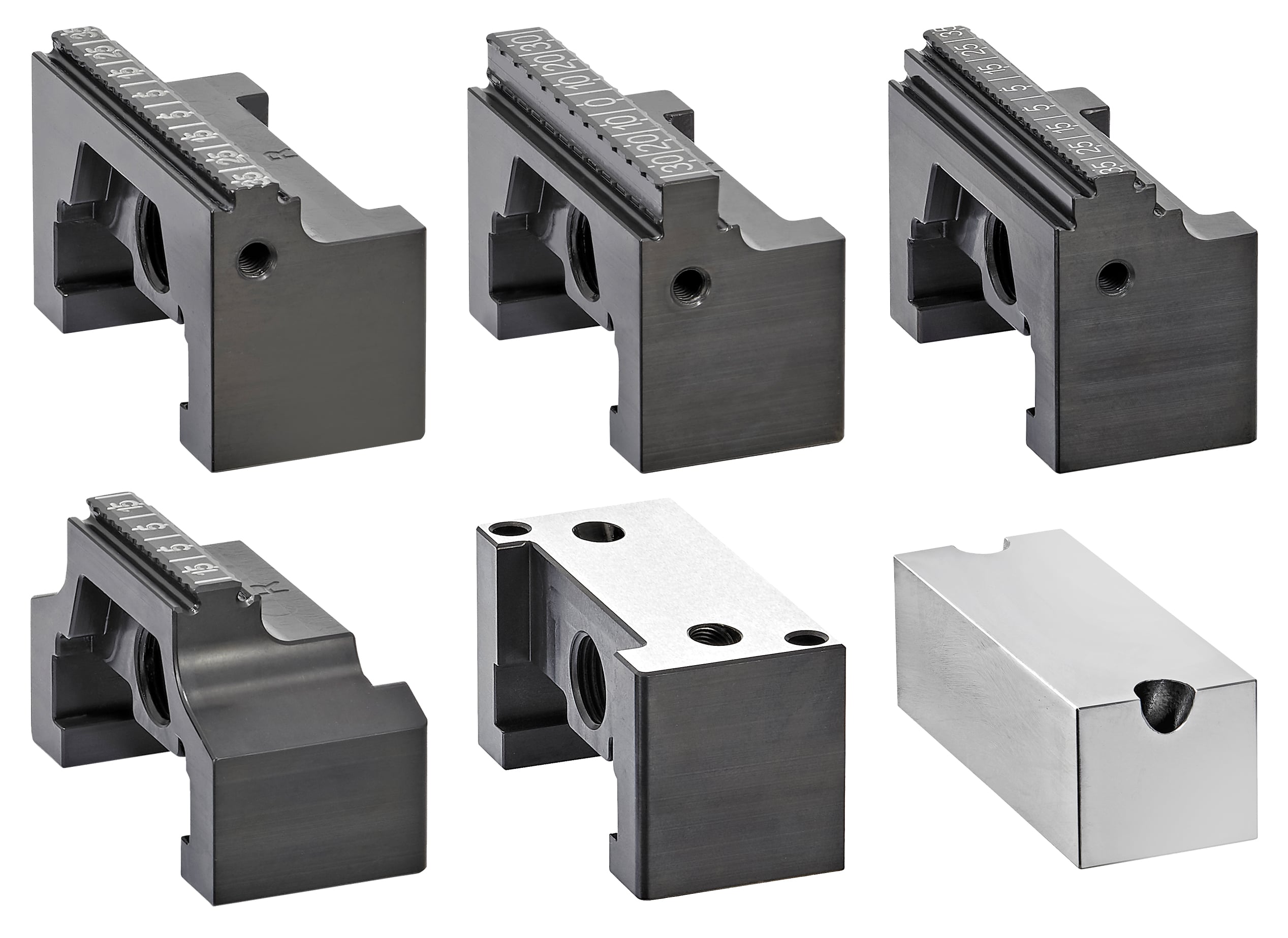

Royal SLV™ Standard-Grip Jaw Set – Included with Each Vise
Royal SLV™ Double-Grip Jaw Set – Increased Clamping Depth and a Second Row of Serrations for Very Aggressive Machining

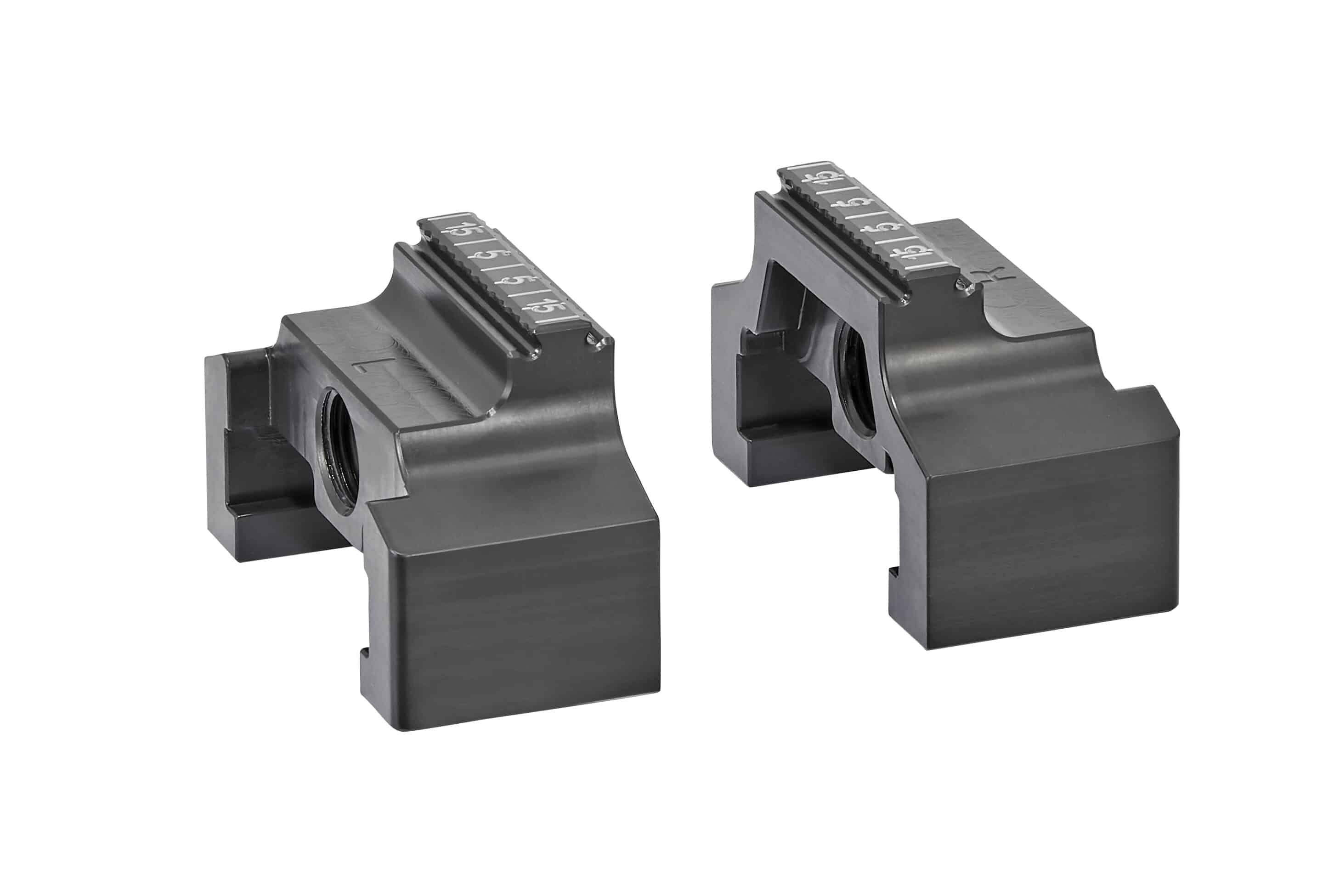

Royal SLV™ Combo Jaw Set – Both Serrated and Smooth Gripping Surfaces for Roughing and Finishing
Royal SLV™ Slim-Grip Jaw Set – Extra Clearance for Narrow Workpieces
Fits Vise Model | Clamping Width | Clamping Depth | PART NUMBER | Price | |
---|---|---|---|---|---|
SLV 75 | 1.73 | 0.11 | $707.00 |
