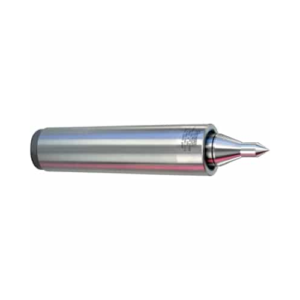

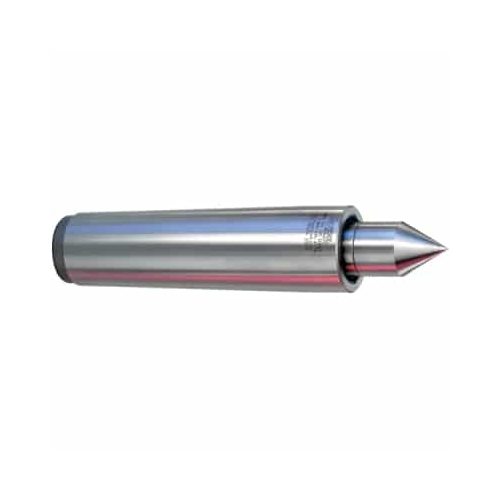

Royal Spring Type Live Center
Standard Point
3 Morse Taper


In Stock for Same Day Shipping

  • Unique spring-loaded point compensates for workpiece thermal expansion.
  • Low-profile design provides outstanding tool clearance.
  • Can be used in the turret of sub-spindle machines to overcome a lack of hydraulic compensation.
  • Body and point are hardened and ground for strength and long life.
  • All Royal Live Centers are proudly Made in U.S.A.


Center Dimension A (Center Taper) 3 MT
Center Dimension B 0.938
Center Dimension F 1.16
Weight of Workpiece (lbs.) 940
Center Dimension G 0.55
Spring Travel 0.14
Max Suggested RPM 5,000
Thrust Load (lbs.) 315
