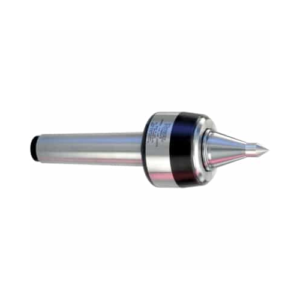

Royal High-Precision Quad-Bearing Live Center
CNC Point, 2 Morse Taper

Part Number: 10662 Category:

$1,085.00

In Stock for Same Day Shipping

  • An excellent choice for precision turning, grinding, and hard-turning.
  • Guaranteed accurate to ± 0.00005” TIR or better.
  • Precision assembly of three angular contact bearings secured by a lock nut provide exceptional rigidity and accuracy.
  • Low-profile head and extended point combine to offer superior tool clearance.
  • Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
  • Body and point are hardened and ground for strength and long life.
  • All Royal Live Centers are proudly Made in U.S.A.



Center Dimension A (Center Taper) 2 MT
Center Dimension B 1.70
Center Dimension E 2.120
Weight of Workpiece (lbs.) 465
Center Dimension F 1.75
Center Dimension G 0.88
Center Dimension H 0.38
Center Dimension I 0.63
Max Suggested RPM 6,000
Thrust Load (lbs.) 1,270
