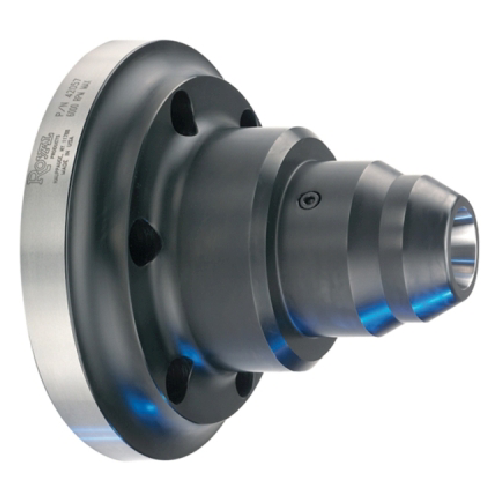

Royal Low-Profile Pullback CNC Collet Chuck
5C Compact Threaded-Nose 6" Length with A2-6 Mount
$2,520.00
In Stock for Same Day Shipping
- Traditional pullback design - collet is drawn into chuck for closing, pushed out for opening.
- Low-profile nose offers outstanding tool clearance.
- Includes free custom machined connector to fit your exact lathe drawtube specifications.
- In-stock for same-day shipping.
- For lathes with more than 1-3/4" bar capacity, check out our Quick-Grip Collet Chucks with bar capacities up to 4" diameter!
*Threaded-nose collet chucks are for use with 5C step collets that close on the head, not the 10-degree angle. Never exceed the manufacturer's rpm and drawbar force limits for any threaded accessories.
| Collet Chuck Weight (lbs) | 18 |
|---|---|
| Spindle Type | A2-6 |
| Collet Type | 5C |
| Low-Profile Capacity | 1 1⁄16″ |
| (A) Overall Length | 6.00 |
| (B) Nose Diameter | 2.187-10 |
| (C) Nose Length | 1.22 |
| (D) Body Diameter | 3.14 |
| (E) Flange Diameter | 7.45 |
| Max Drawbar Force (lbs) | 4,490 |
| Max Clamping Force (lbs) | 15,750 |
| Max RPM | 6,000 |
| Threaded Nose | Y |
Filters Sort results
Reset Apply
PRODUCT | PART NUMBER | PRICE | ||
|---|---|---|---|---|
 | Collet Stop for Low-Profile Collet Chuck — 5C Accu-Length™ & Pullback | $31.00 | ||

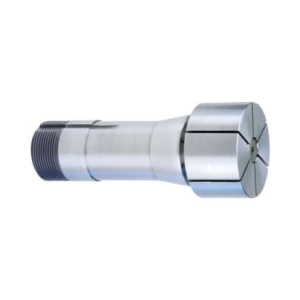

 | 5C Internal Expanding Collet — 3⁄4″ Head Diameter × 1″ Head Length | $259.00 | ||
| 5C Internal Expanding Collet — 1″ Head Diameter × 1″ Head Length | $259.00 | ||
| 5C Internal Expanding Collet — 1 1⁄2″ Head Diameter × 1″ Head Length | $246.00 | ||
| 5C Internal Expanding Collet — 1 1⁄2″ Head Diameter × 1 1⁄2″ Head Length | $270.00 | ||
| 5C Internal Expanding Collet — 1 1⁄2″ Head Diameter × 2″ Head Length | $271.00 | ||
| 5C Internal Expanding Collet — 2″ Head Diameter × 1″ Head Length | $284.00 | ||
| 5C Internal Expanding Collet — 2″ Head Diameter × 1 1⁄2″ Head Length | $299.00 | ||
| 5C Internal Expanding Collet — 2″ Head Diameter × 2″ Head Length | $344.00 | ||
| 5C Internal Expanding Collet — 2 1⁄2″ Head Diameter × 1″ Head Length | $347.00 | ||
| 5C Internal Expanding Collet — 3″ Head Diameter × 1″ Head Length | $381.00 | ||
| 5C Internal Expanding Collet — 5″ Head Diameter × 2″ Head Length | $732.00 | ||
 | 5C Step Collet — 2″ Head Diameter | $234.00 | ||
| 5C Step Collet — 3″ Head Diameter | $310.00 | ||
| 5C Step Collet — 4″ Head Diameter | $482.00 | ||
| 5C Step Collet — 5″ Head Diameter | $624.00 |
