Royal Low-Profile Accu-Length™ CNC Collet Chuck
5C
A2-5

$5,370

  • These chucks utilize spring-type collets and therefore do not provide the parallel grip functionality or wide gripping range of our Quick-Grip™ models.
  • Dead-length operation - sleeve pushes forward to compress the collet, providing precise z-axis part positioning.
  • Low-profile nose offers outstanding tool clearance.
  • In-stock for same-day shipping.
Spindle Type A2-5
Collet Chuck Weight (lbs) 21
Collet Type 5C
Low-Profile Capacity 1 1⁄16″
(A) Overall Length 5.75
(B) Nose Diameter 2.43
(C) Nose Length 1.00
(D) Body Diameter 4.00
(E) Flange Diameter 6.45
Max Drawbar Force (lbs) 4,000
Max Clamping Force (lbs) 13,600
Max RPM 6,000

You might also be interested in...

Filters Sort results
Reset Apply
PRODUCT
PART NUMBER
PRICE
Royal Ejector for Low-Profile Collet Chuck
Royal Ejector for Low-Profile Collet Chuck — 5C Accu-Length™
45145
$606
Royal Collet Stop for Low-Profile Collet Chuck
Collet Stop for Low-Profile Collet Chuck — 5C Accu-Length™ & Pullback
20030
$28

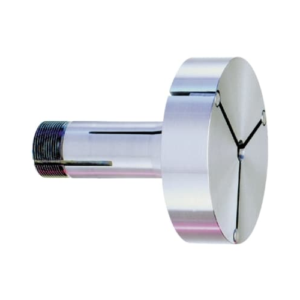

Royal 5C Step Collet
