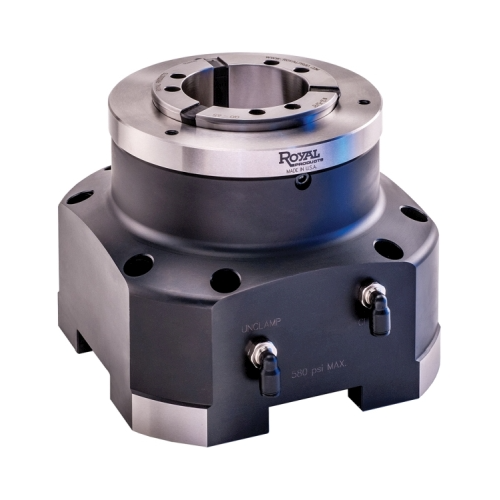

Royal Quick-Grip™ Power-Block™ Hydraulic Collet Fixture
QG-52
$3,445.00
In Stock for Same Day Shipping
- Royal Power-Block™ Collet Fixtures bring the full functionality of our Quick-Grip™ CNC Collet Chucks to your vertical and horizontal machining centers.
- These fixtures incorporate many of the same great features as our Quick-Grip™ CNC Collet Chucks, including ten-second collet changes and the use of parallel-grip collets with a full .062" clamping range (0.080" for QG-100).
- A great alternative to traditional vises and fixtures – especially for long, thin parts, or those with asymmetrical external features.
- Units are designed to be actuated via hydraulic pressure, and may also be actuated pneumatically for lighter-duty applications.
- Engineered for use in both stationary and rotary-table applications. Caution – not for use on lathes or grinders above 60 rpm!
- Heavy-duty all steel construction with a large double-acting piston for high clamping force.
- Configured with both side and bottom ports for plumbing flexibility.
- Multiple units can be plumbed in series for single-source actuation.
- Mounting face is precision-ground for perpendicularity to centerline.
- Ideal for high-production vertical and horizontal milling applications.
- For use with Royal Quick-Grip™ collets and installation tools.
| Collet Model | QG-52 |
|---|---|
| Collet Capacity Round | 2.00 |
| Collet Capacity Square | 1.37 |
| Power-Block™ Dimension A | 6.06 |
| Power-Block™ Dimension B | 6.89 |
| Power-Block™ Dimension C | 4.13 |
| Power-Block™ Dimension D | 4.72 |
| Power-Block™ Dimension E | 3.56 |
| Max Input Pressure (psi.) | 580 |
| Max Axial Force (lbs) | 7865 |
| Max Clamping Force (lbs) | 17,980 |
| Fixture Weight (lbs) | 25 |
