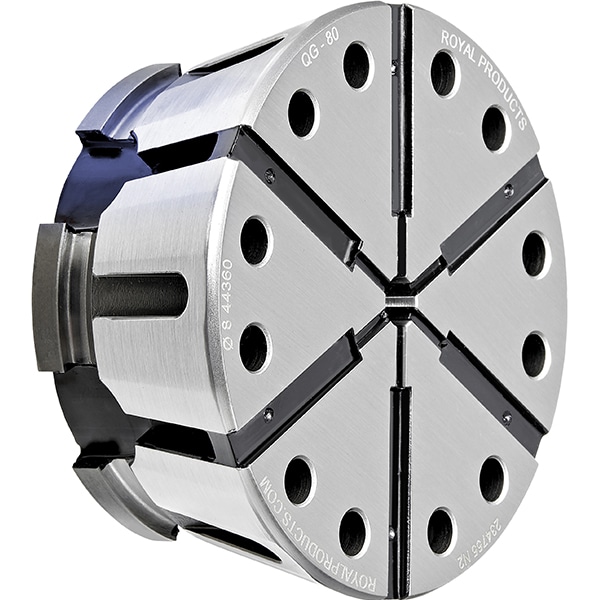

Royal Quick-Grip™ Emergency Collet
QG-80
20mm (0.79")
$658.00
In Stock for Same Day Shipping
Advantages
- Semi-hard Quick-Grip™ emergency collets are designed to be machined in-place by the user to accommodate special sizes, shapes, steps, etc.
- Available in assorted pilot hole sizes to minimize machining time.
- Collets can be counter-bored beyond standard capacity, eliminating the need for a three-jaw chuck on many jobs. The chart below provides some basic counter-bore guidelines, but many other diameter/depth combinations are possible. Please contact Royal for additional information.
- Boring fixture holds collet segments firmly in-place and puts collet under slight compression to ensure accuracy and roundness during machining. Order fixture separately.
Product Specifications
| Collet Style | Emergency |
|---|---|
| Fits Chuck Model | QG-80 |
| Pilot Hole Size | 20mm (0.79″) |
Why Do Top Manufacturers Insist on Royal Quick-Grip™ Collets?
Industry-Leading 0.062" (0.080” for QG-100) Gripping Range Covers More Diameters with Fewer Collets
Ultra-Precision Accuracy – 0.0002" TIR or Better
Vulcanization Guaranteed for Life
Parallel-Grip Maintains Full-Length Part Engagement
Exceptional Grip-Force Enables Very Aggressive Cutting
Exclusive Royal Risk-Free Performance Guarantee
Fast Delivery on Custom Shapes and Sizes
Special Slot Relief Grinding Eliminates "Collet Popping" and Minimizes Chuck Wear
These Extremely Advanced Collets Will Revolutionize Your Workholding
- Industry-leading 0.062″ Gripping Range (0.080″ for QG-100) – greater than other quick-change collets on the market and more than 12X that of traditional spring collets.
- Royal Quick-Grip Collets are precision-ground to nominal size, with a gripping range of ±0.031″ (0.040” for QG-100) to handle undersized/oversized stock.
Example – a ½” QG-65 collet is ground to 0.500″ dia., and can hold any part ranging in size from 0.469″ – 0.531″ dia. - Ultra-Precision Accuracy – 0.0002″ TIR or better guaranteed on round-bores. Total system accuracy (chuck + collet) guaranteed to 0.0004″ or better.
- All Royal Quick-Grip™ Collets are designed for minimal projection beyond the chuck face (≤ 0.020″) for optimum rigidity and machine work-zone utilization.
- All models have a smooth gripping surface, but round-bores are also available from stock in a double-serrated version for very aggressive first-op machining.
- Vulcanized rubber between the hardened steel collet segments provides outstanding protection against coolant and chip penetration, and Royal’s advanced vulcanization process carries a lifetime guarantee against failure.
- Collets can be counter-bored for increased capacity.
- S-type master collets available for QG-65 and QG-80 chuck models.
- Royal Quick-Grip™ Collets are compatible with some other brands of quick-change chucks, but note that the QG-80 and QG-100 models have a six-slot design (for increased gripping torque) that requires the use of a Royal installation tool. Call us to verify compatibility.
- Custom sizes and shapes available as quick-ship specials. Collet segments can also be carbide-coated for extremely harsh applications. Contact one of our applications engineers at 1-800-645-4174 to discuss your requirements.
Round – Smooth
Round – Serrated
Hex
Square
