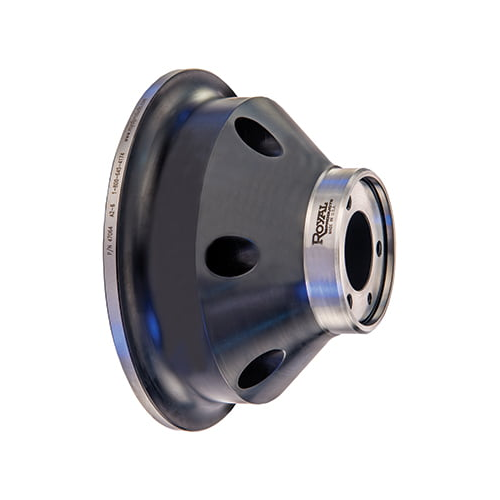

CNC I.D. Body Assembly — With A2-6 Mount
CNC I.D. Workholding
CNC I.D. Body Assembly — With A2-6 Mount - Image 3

CNC I.D. Body Assembly — With A2-6 Mount

Part Number: 47064 Category:

$2,390.00

In Stock for Same Day Shipping

  • This body provides a precision interface for mounting the system to a CNC lathe spindle.
  • CNC body assembly incudes the hardened steel body, a custom-machined drawtube for hassle-free installation, and all mounting hardware.
  • Order mandrels, locators, and sleeves separately.



Spindle Mount A2-6
Mandrel Dimension A 4.00
Mandrel Dimension B 4.59
Mandrel Dimension F 7.45
Mandrel Dimension G 6.25
