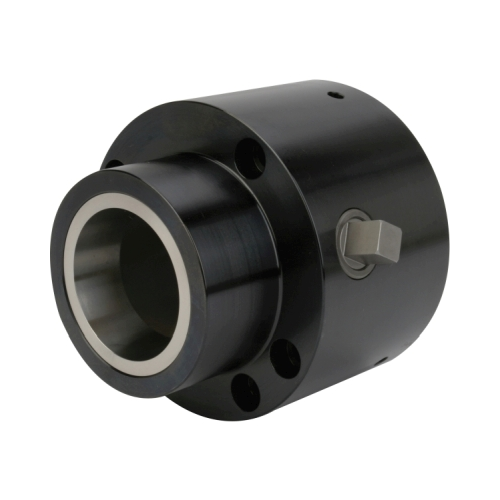

16C Manual Collet Fixture
$1,690.00
- Opened and closed via an internal cam mechanism.
- Accu-Length™ operation – collet and workpiece position remains fixed for precise length control.
- Can be used in both stationary and rotary table applications.
Caution – not for use on lathes or grinders above 5 rpm! - Special model 62004 bolts directly to Haas HRT-100 and HRT 110* and other small indexers.
Note – cam bolt is recessed on this model. - All other models configured for both four and six-slot mounting – 4.125" bolt circle diameter.
- All models include cam wrench.
| Collet Model | 16C |
|---|---|
| Collet Capacity | 1 5⁄8 |
| Manual Collet Fixture Type | Type 2 |
| Manual Collet Fixture Dimension A | 4.95 |
| Manual Collet Fixture Dimension B | 3.35 |
| Manual Collet Fixture Dimension D | 4.63 |
| Manual Collet Fixture Dimension E | 1.50 |
