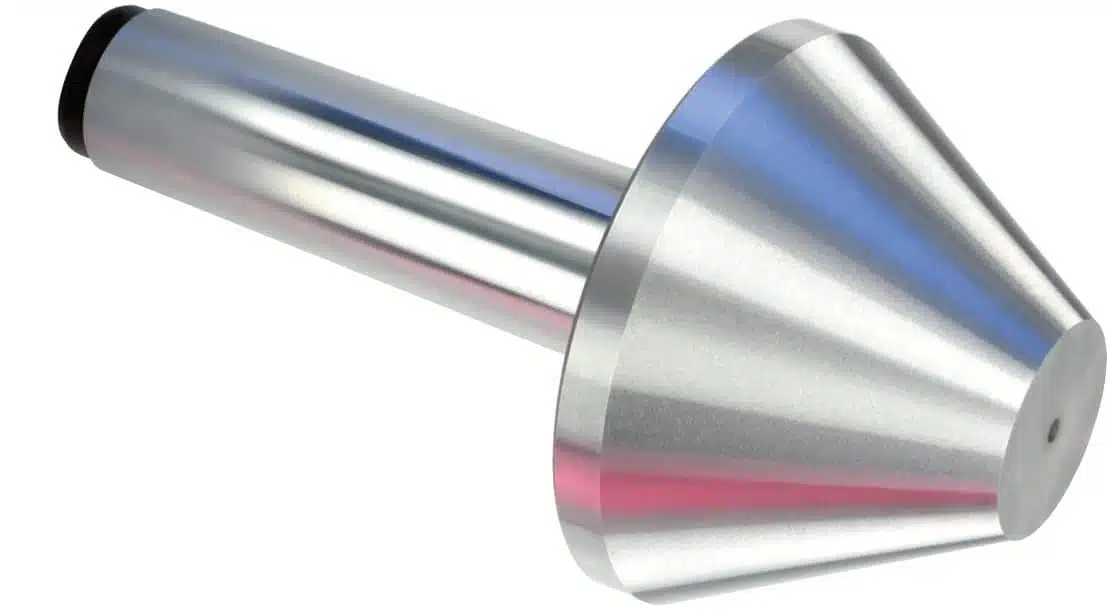

Royal Bull Head Live Centers

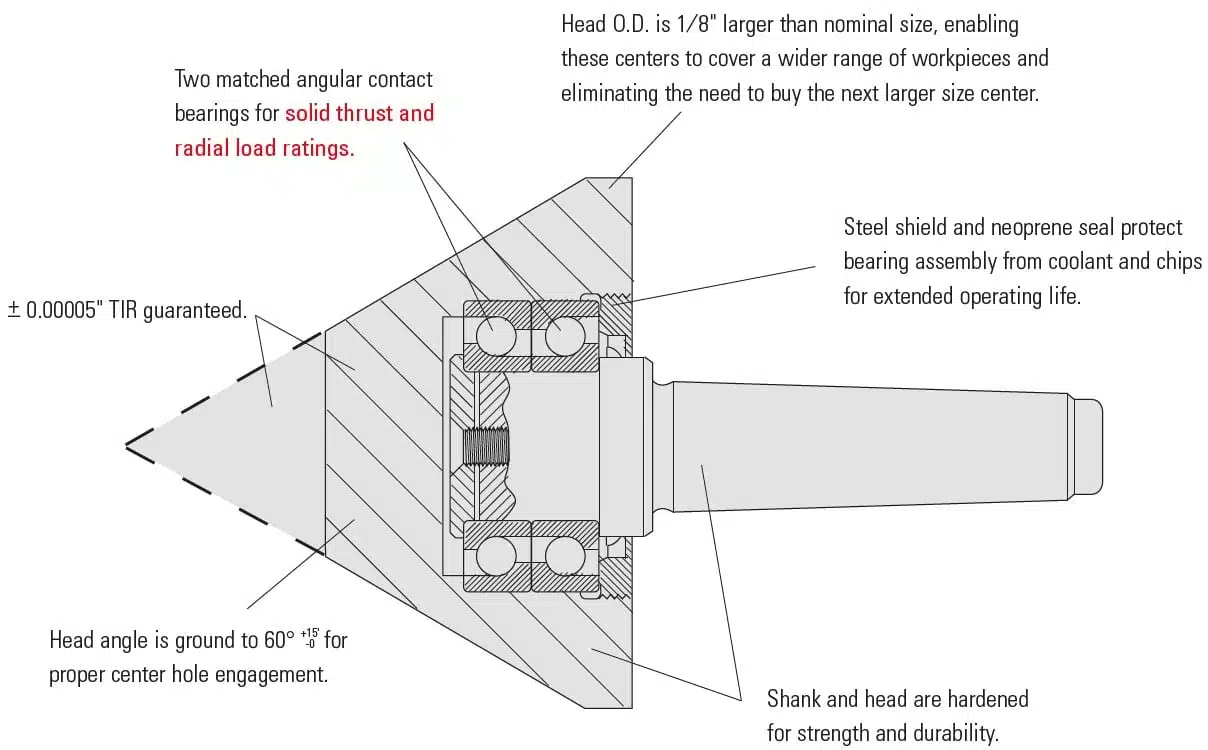

  • Designed for turning pipes, tubes, and parts with extra-large center holes.
  • Two matched angular contact bearings provide good thrust and radial load ratings.
  • Head diameter is 1⁄8″ over nominal size, enabling these centers to cover a wider range of workpieces.
  • Bull Head design is shorter than a pipe head, reducing potential interference in blind center hole applications and ensuring that the load is positioned over the bearings for optimum strength.
Proudly Made In USA

Royal Standard Bull Head Live Centers

Filters Sort results
Reset Apply

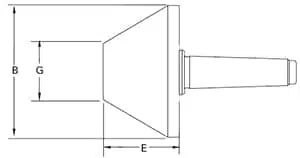

Taper
B
E
G
MAX.
SUGGESTED
RPM
WEIGHT OF
WORKPIECE
(lbs.)
THRUST
LOAD (lbs.)
PART NUMBER
PRICE
3 MT
3.15
2.520
1.00
5,000
615
1,780
10902
$977
4 MT
4.15
3.010
1.25
4,500
860
2,550
10904
$1,211
5 MT
4.15
3.010
1.25
4,500
860
2,550
10905
$1,211
5 MT
5.15
3.170
2.00
4,000
1,145
3,450
10907
$1,508
5 MT
6.15
3.600
2.50
3,500
1,450
4,500
10909
$2,085

* Maximum recommended operating limit. Operating above this speed could result in heat build-up and accelerated bearing wear.
