Royal Heavy-Duty CNC Spindle Type Live Centers

  • One of our most popular models – an excellent heavy-duty live center designed to handle almost all manual and CNC turning jobs.
  • Heavy-duty precision bearings provide exceptional radial and thrust load capacities.

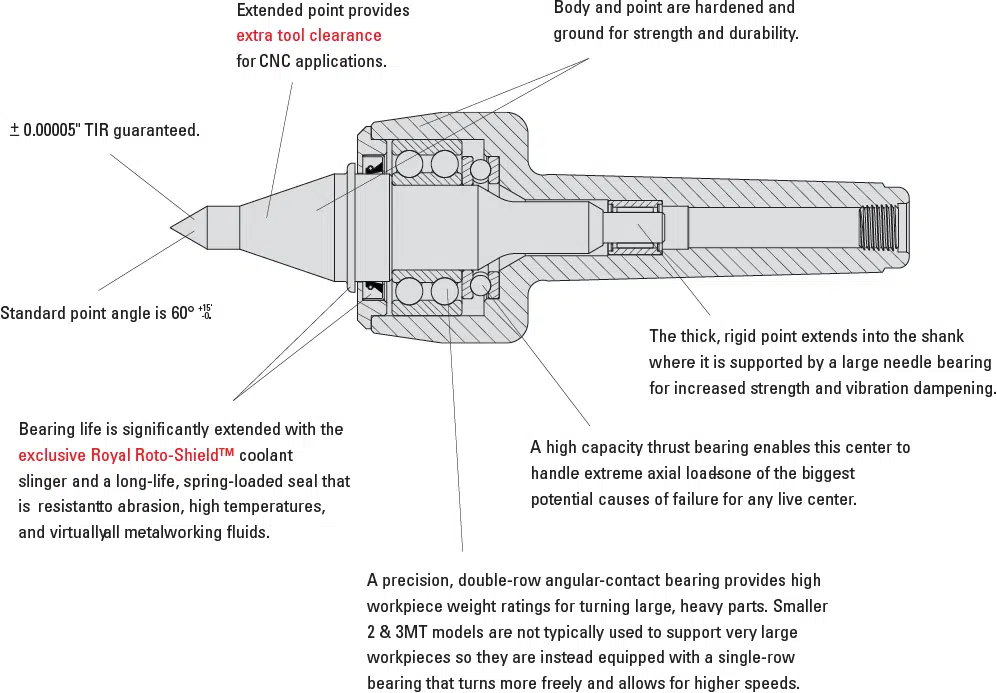

  • The thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening.
  • Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
  • Body and point are hardened and ground for accuracy and durability.
Royal Heavy-Duty Spindle Type Live Center
High-Pressure Coolant Approved
Heavy-Duty CNC Spindle Type Live Center Sizing Schematic
Proudly Made In USA

Royal Spindle Type Live Centers

Filters Sort results
Reset Apply
Taper
B
E
F
G
H
I
MAX.
SUGGESTED
RPM
WEIGHT OF
WORKPIECE
(lbs.)
THRUST
LOAD (lbs.)
PART NUMBER
PRICE
2 MT
1.75
1.470
1.35
0.88
0.38
0.63
6,000
375
2,360
10212
$923.00
Max:
Min: 0
Step: 1
Add
3 MT
2.33
1.750
1.86
1.00
0.38
0.63
5,000
740
3,900
10213
$923.00
Max:
Min: 0
Step: 1
Add
4 MT
2.68
1.980
2.18
1.25
0.50
0.81
4,500
1,120
4,050
10214
$1,170.00
Max:
Min: 0
Step: 1
Add
5 MT
3.45
2.810
2.58
1.50
0.50
0.81
3,500
1,930
5,700
10215
$1,570.00
Max:
Min: 0
Step: 1
Add
6 MT
4.00
3.150
3.00
2.00
0.75
1.28
3,500
2,420
6,000
10216
$3,040.00
Max:
Min: 0
Step: 1
Add
Maximum recommended operating limit. Operating above this speed could result in heat build-up and accelerated bearing wear.
Insist on Roto-Shield™ Technology – Only Available on Royal Live Centers
