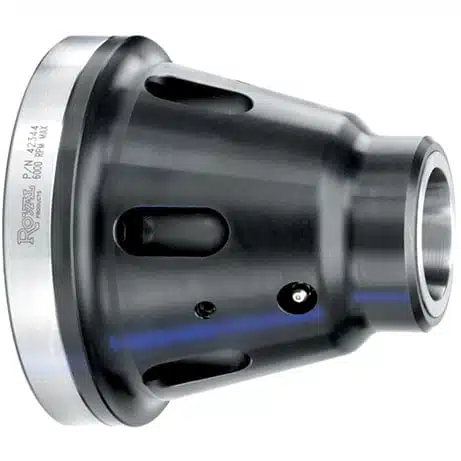

ROYAL LOW-PROFILE ACCU-LENGTH™ CNC COLLET CHUCKS

Simple Design

All Royal CNC collet chucks are balanced by design for high-speed operation, and can often be run at higher speeds than conventional 3-jaw chucks because they are less prone to the negative effects of centrifugal force.

Spindle Bearing Protection

An oversized flange acts as a coolant slinger to protect lathe spindle bearings from contaminants.

Bolt & Go™

Our exclusive Bolt & Go™ mounting feature is standard on all Royal Low-Profile Collet Chuck models. Bolt & Go™ enables chucks to be mounted very quickly and ensures maximum accuracy and rigidity. Click here for additional information.

Completely Sealed

Lubricated for life, these chucks incorporate multiple O-ring seals to keep contaminants out and prevent chip pack-up on bore-thru applications.

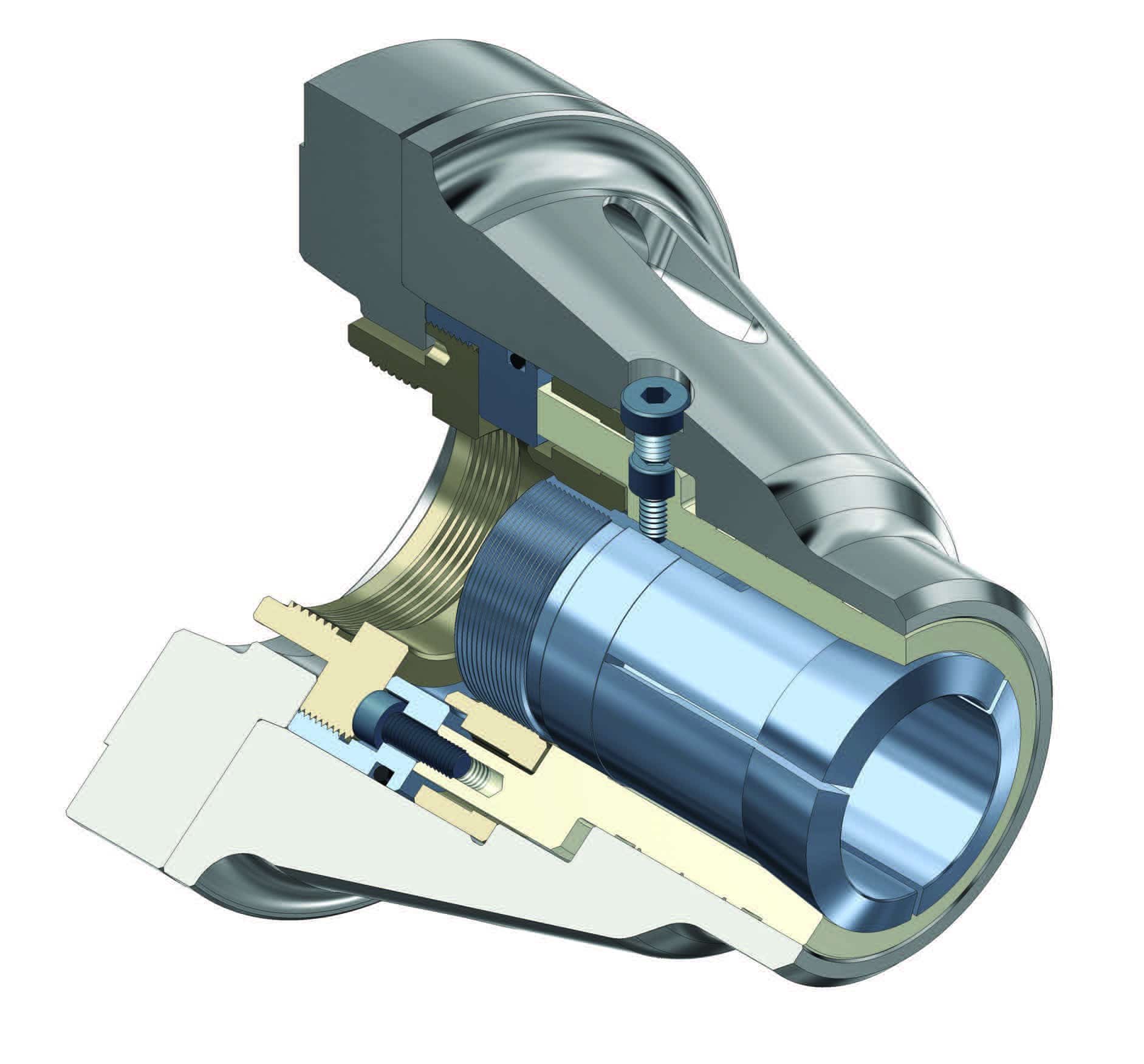

Dead-Length Operation

Royal Quick-Grip™ Accu-Length™ CNC Collet Chucks incorporate dead‑length operation to eliminate part pullback. With this design, the collet is held stationary in the chuck body and a tapered sleeve pushes forward to compress it, resulting in precise z-axis workpiece positioning.

Specials

If you have a special application that goes beyond the scope of our standard line, we will be happy to design and build a custom system to meet your needs. Please contact us to discuss your requirements.

Outstanding Rigidity

All Royal Accu-Length™ Collet Chucks have been optimized for maximum rigidity, and all components are hardened for strength and durability.

Low-Profile

All external dimensions have been optimized to provide maximum tool clearance.

High Accuracy

All Royal Accu-Length™ CNC Collet Chucks are guaranteed to run within 0.0002" TIR.

Wide Range

Royal manufactures a wide range of Accu-Length™ Collet Chucks to fit all popular spindle noses and collet styles.

Easy Installation

All Royal Low-Profile Accu-Length™ Collet Chucks include a collet wrench, mounting hardware, mounting wrenches, and a custom-machined drawtube connector for hassle-free installation.

ROYAL LOW-PROFILE ACCU-LENGTH™ CNC COLLET CHUCKS

  • These chucks utilize spring-type collets and therefore do not provide the parallel grip functionality or wide gripping range of our Quick-Grip™ models.
  • Dead-length operation – sleeve pushes forward to compress the collet, providing precise z-axis part positioning.
  • Low-profile nose offers outstanding tool clearance.
  • In-stock for same-day shipping.

Royal Low-Profile Accu-Length™ CNC Collet Chucks

Spindle Type
Collet Type

Royal Low-Profile
Accu-Length™
CNC Collet Chucks
Filter
Filters Sort results
Reset Apply
SPINDLE
TYPE
COLLET
TYPE
CAPACITY

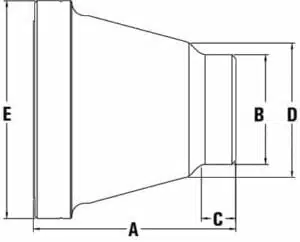

A
OVERALL
LENGTH
B
NOSE
DIAMETER
C
NOSE
LENGTH
D
BODY
DIAMETER
E
FLANGE
DIAMETER
CHUCK
WEIGHT
(lbs.)
MAX
DRAWBAR
FORCE (lbs.)
MAX
CLAMPING
FORCE (lbs.)
MAX
RPM
PART
NUMBER
PRICE
Risk-Free Performance Guarantee
A2-5
5C
1 1⁄16″
5.75
2.43
1.00
4.00
6.45
21
4,000
13,600
6,000
42330
$5,910.00
Max:
Min: 0
Step: 1
Add
A2-6
5C
1 1⁄16″
5.75
2.43
1.00
4.00
7.45
21
4,000
13,600
6,000
42332
$6,190.00
Max:
Min: 0
Step: 1
Add
110mm
5C
1 1⁄16″
5.55
2.43
1.00
4.00
6.45
21
4,000
13,600
6,000
42334
$6,190.00
Max:
Min: 0
Step: 1
Add
140mm
5C
1 1⁄16″
4.45
2.43
1.00
4.00
6.45
13
4,000
13,600
6,000
42336
$6,190.00
Max:
Min: 0
Step: 1
Add
A2-5
16C
1 5⁄8″
6.50
3.25
1.03
3.80
6.45
25
5,400
18,300
6,000
42338
$6,480.00
Max:
Min: 0
Step: 1
Add
A2-6
16C
1 5⁄8″
6.25
3.25
1.03
3.80
7.45
25
5,400
18,300
6,000
42340
$6,690.00
Max:
Min: 0
Step: 1
Add
A2-8
16C
1 5⁄8″
7.25
3.25
1.03
3.67
9.45
51
5,400
18,300
4,500
42342
$6,910.00
Max:
Min: 0
Step: 1
Add
110mm
16C
1 5⁄8″
6.30
3.25
1.03
3.80
6.45
25
5,400
18,300
6,000
42337
$6,690.00
Max:
Min: 0
Step: 1
Add
140mm
16C
1 5⁄8″
6.30
3.25
1.03
3.80
6.45
25
5,400
18,300
6,000
42343
$6,850.00
Max:
Min: 0
Step: 1
Add
A2-5
3J
1 3⁄4″
6.23
3.25
1.03
3.97
6.45
24
5,400
26,300
6,000
42344
$6,690.00
Max:
Min: 0
Step: 1
Add
A2-5
3J
1 3⁄4″
5.47
3.25
1.03
4.06
5.20
16
5,400
26,300
6,000
42345
$6,690.00
Max:
Min: 0
Step: 1
Add
A2-6
3J
1 3⁄4″
6.25
3.25
1.03
3.97
7.45
26
5,400
26,300
6,000
42346
$6,910.00
Max:
Min: 0
Step: 1
Add
A2-8
3J
1 3⁄4″
7.00
3.25
1.03
3.97
9.45
49
5,400
26,300
4,500
42348
$7,170.00
Max:
Min: 0
Step: 1
Add
110mm
3J
1 3⁄4″
5.42
3.25
1.03
4.06
5.20
17
5,400
26,300
6,000
42351
$6,690.00
Max:
Min: 0
Step: 1
Add
140mm
3J
1 3⁄4″
6.03
3.25
1.03
3.97
6.45
23
5,400
26,300
6,000
42354
$7,060.00
Max:
Min: 0
Step: 1
Add

For capacities greater than 1.75", choose the appropriate Royal Quick-Grip™ CNC Collet Chucks.  Quick-Grip™ CNC Collet Chucks offer many advantages over Low-Profile Collet Chucks, including superior tool clearance, parallel-grip functionality, and better price-points.
