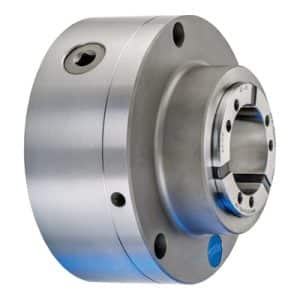

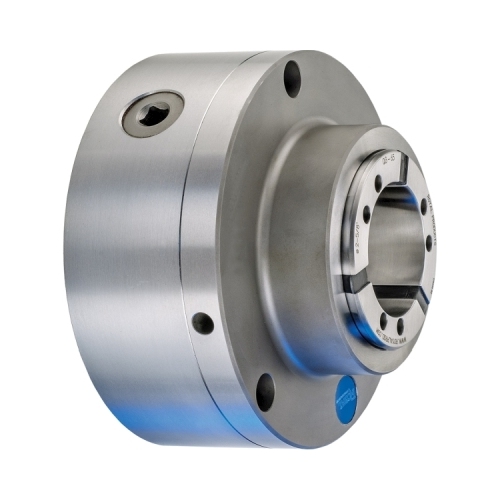

Royal Key-Operated Quick-Grip™ Collet Chuck for Manual Lathes
QG-65
$5,405.00
In stock
- Now you can enjoy the same great features of the Royal Quick- Grip™ CNC Collet Chuck on your manual engine lathes, including ten-second collet changes and parallel-grip collets with a full .062" clamping range.
- No hydraulic actuator needed – chuck is operated with a traditional square-drive chuck key (included) via a side-access screw.
- In addition to manual lathe applications, this chuck can also be utilized on indexers, rotary tables, etc.
- By eliminating the drawtube and offering a full 2-5/8" thru capacity (compared to 1-1/16" of a 5C collet closer), users can make much better use of their lathe’s spindle capacity.
- Very accurate – 0.0005" TIR guaranteed!
- Balanced to 4,000 rpm.
- Superior gripping force – up to 16,860 lbs.
- Order backplate separately. Other backplate styles available as custom order.
- For use with Royal QG-65 collets and installation tools.
- Note – this product is specifically designed for use on manual equipment not equipped with a hydraulic actuator. For CNC lathes, better performance will be achieved through the use of Royal CNC Collet Chucks.
| Collet Model | QG-65 |
|---|---|
| Collet Capacity | 2.66 |
| Key-Operated Quick-Grip™ Collet Chuck Dimension A | 7.87 |
| Key-Operated Quick-Grip™ Collet Chuck Dimension B | 4.92 |
| Key-Operated Quick-Grip™ Collet Chuck Dimension C | 4.45 |
| Key-Operated Quick-Grip™ Collet Chuck Dimension D | 1.38 |
| Max Tightening Torque | 118 |
| Max Clamping Force (lbs) | 16,860 |
Filters
Sort results
Reset
Apply
PRODUCT | PART NUMBER | PRICE | ||
|---|---|---|---|---|
 |
Royal Quick-Grip™ Collet Installation Tool — QG-65 Manual |
44098 |
$598.00
|
|
 |
Backplate for Key-Operated QG Lathe Chuck — A2-5 |
43930 |
$1,089.00
|
|
|
Backplate for Key-Operated QG Lathe Chuck — A2-6 |
43932 |
$1,190.00
|
|
 |
Backplate for Key-Operated QG Lathe Chuck — D1-5 |
43934 |
$1,375.00
|
|
|
Backplate for Key-Operated QG Lathe Chuck — D1-6 |
43936 |
$1,665.00
|
