Royal RCS™ Receivers

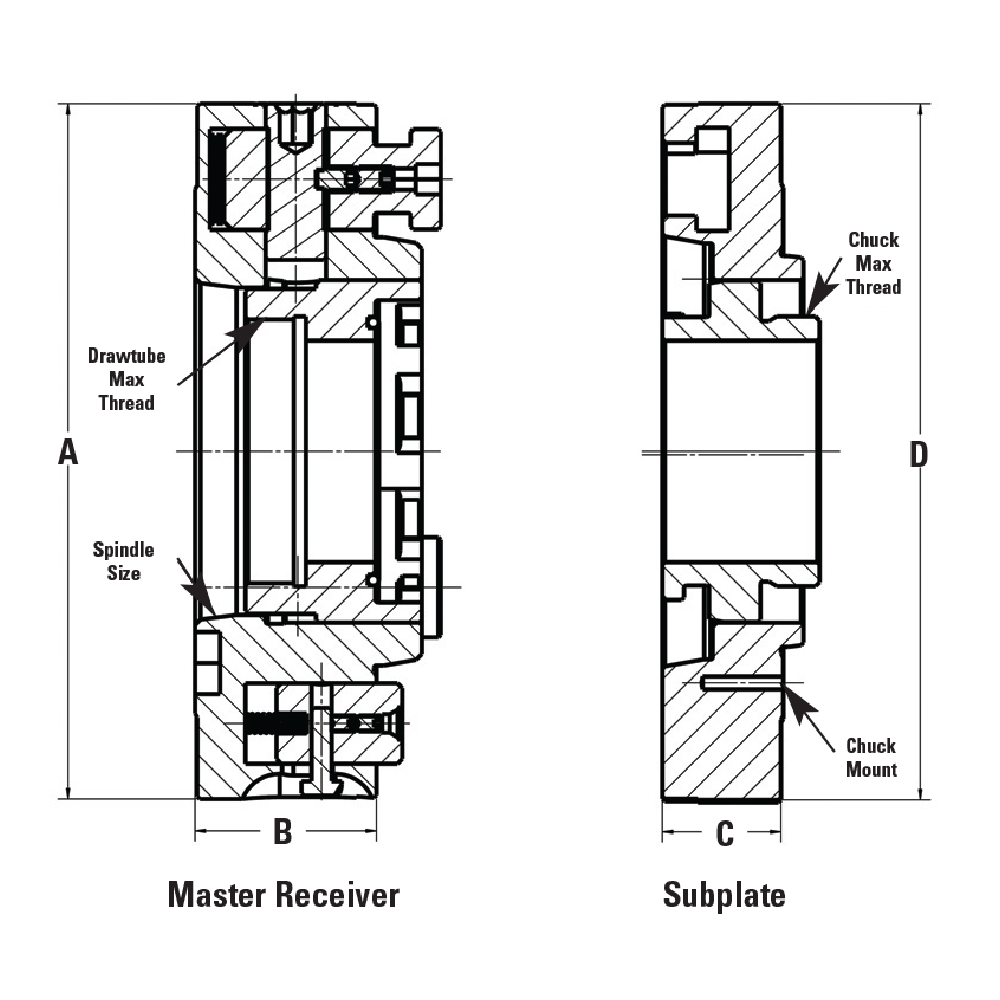

RCS™ Receiver Model	LATHE SPINDLE TYPE	DESCRIPTION	MAX BAR CAPACITY (in)	A	B	Drawtube Max Thread	Max Drawtube Force (lbs) Pull	Max Drawtube Force (lbs) Push	MAX RPM	Weight (lbs)	PART NUMBER
RCS-10	A2-6	RCS-10 Receiver with A2-6 Mount	3.31	9.94	2.25	M95	15,000	15,000	4,200	43	65204
RCS-10	A2-8	RCS-10 Receiver with A2-8 Mount	3.31	9.94	2.25	M95	15,000	15,000	4,200	41	65206
RCS-8	A2-6	RCS-8 Receiver with A2-6 Mount	3.00	8.63	2.25	M85	12,000	11,500	5,000	32	65202

* Includes custom machined drawtube connector with bayonet interface

Royal RCS™ Subplates with Couplers

RCS™ Receiver Model	DESCRIPTION	MAX BAR CAPACITY (in)	C	D	Chuck Max Thread	Max Drawtube Force (lbs) Pull	Max Drawtube Force (lbs) Push	MAX RPM	Weight (lbs)	PART NUMBER
RCS-10	RCS-10 to 170MM Mount 8″ 3-Jaw Chuck Subplate with Coupler	3.31	2.81	9.94	M100	15,000	15,000	4,200	39	65212
RCS-10	RCS-10 to 220MM Mount 10/12″ 3-Jaw Chuck Subplate with Coupler	3.31	1.75	9.94	M120	15,000	15,000	4,200	28	65213
RCS-10	RCS-10 to A2-6 Subplate with Coupler	3.00	2.94	9.94	M90	15,000	15,000	4,200	35	65221
RCS-10	RCS-10 to A2-8 Subplate with Coupler	3.31	1.31	9.94	M120	15,000	15,000	4,200	22	65222
RCS-10	RCS-10 to QG-65 Subplate with Coupler	2.60	1.50	9.94	N/A	15,000	10,115	4,200	25	65217
RCS-10	RCS-10 to QG-80 Subplate with Coupler	3.19	1.50	9.94	N/A	15,000	11,240	4,200	25	65218
RCS-8	RCS-8 to 170MM Mount 8″ 3-Jaw Chuck Subplate with Coupler	3.00	1.81	8.63	M105	12,000	11,500	5,000	24	65210
RCS-8	RCS-8 to 220MM Mount 10/12″ 3-Jaw Chuck Subplate with Coupler	3.00	1.81	8.66	M105	12,000	11,500	5,000	23	65211
RCS-8	RCS-8 to A2-6 Subplate with Coupler	3.00	2.25	8.63	M90	12,000	11,500	5,000	23	65220
RCS-8	RCS-8 to QG-65 Subplate with Coupler	2.60	1.50	8.63	N/A	12,000	10,115	5,000	18	65215
RCS-8	RCS-8 to QG-80 Subplate with Coupler	3.19	1.50	8.63	N/A	12,000	11,240	5,000	19	65216

* Includes bayonet coupler
