One Size Does Not Fit All –
So We Turned Special Centers Into Standards!

One of Royal’s strengths as a leading live center manufacturer is our ability to design and build custom centers to address non-standard applications. However, there are two major drawbacks that are almost always associated with custom-made centers: longer lead times and higher prices.

As an ISO company dedicated to continuous improvement, we decided to see if it might be possible to categorize special centers according to their similarities, and then offer a few new standard models that could handle most jobs.

Our engineers analyzed the prints of hundreds of special centers that we had manufactured over several years, and the results were shocking – over 90% of our customers’ special needs could be covered with just five new point styles. These are:

Full-diameter long point for shaft work and parts with large center holes.

A reduced-diameter long point for use when greater clearance is needed.

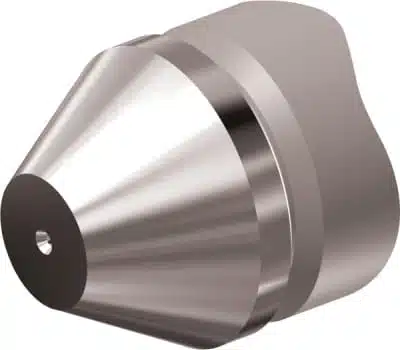

A small bull-nose point for use with tubes or parts with large center holes.

A female point with a 90° included angle for locating on OD part chamfers.

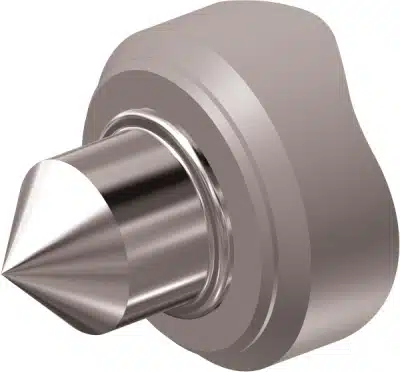

A male point with a 90° included angle for locating on internal part chamfers.

Royal maintains a full inventory of each model to ensure same-day delivery, and because we manufacture them in quantity, they are very aggressively-priced.

Royal Live Center “Specials”

Deciding which live center model to use as a platform for Royal’s new off-the-shelf “special” program was easy. We chose the High-Precision Quad-Bearing model for the following reasons:

  1. Very Rigid Bearing Arrangement
  2. Exclusive Roto-Shield™ Technology
  3. Low-Profile Head

All Models In Stock for Immediate Delivery

Proudly Made In USA
High-Pressure Coolant Approved

Royal High-Precision Quad-Bearing Live Centers – Full Diameter Long Point

Filters Sort results
Reset Apply
Taper
B
E
F
G
MAX.
SUGGESTED
RPM*
WEIGHT OF
WORKPIECE
(lbs.)
THRUST
LOAD (lbs.)
PART NUMBER
PRICE
2 MT
1.70
2.120
1.75
0.88
6,000
465
1,270
10478
$869
3 MT
1.70
2.120
1.75
0.88
6,000
465
1,270
10479
$869
4 MT
2.45
2.780
2.35
1.25
5,000
1,230
2,150
10480
$1,078
5 MT
2.45
2.780
2.35
1.25
5,000
1,230
2,150
10481
$1,131

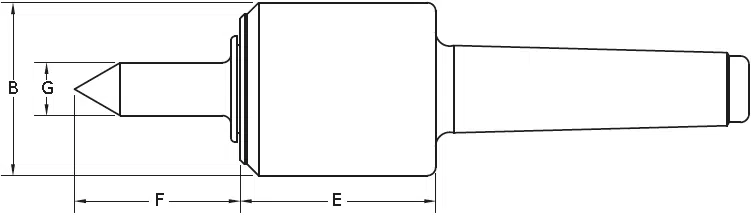

Royal High-Precision Quad-Bearing Live Centers – Small Diameter Long Point

Filters Sort results
Reset Apply
Taper
B
E
F
G
MAX.
SUGGESTED
RPM*
WEIGHT OF
WORKPIECE
(lbs.)
THRUST
LOAD (lbs.)
PART NUMBER
PRICE
2 MT
1.70
2.120
1.75
0.50
6,000
350
1,270
10482
$869
3 MT
1.70
2.120
1.75
0.50
6,000
350
1,270
10483
$869
4 MT
2.45
2.780
2.35
0.75
5,000
925
2,150
10484
$1,078
5 MT
2.45
2.780
2.35
0.75
5,000
925
2,150
10485
$1,131

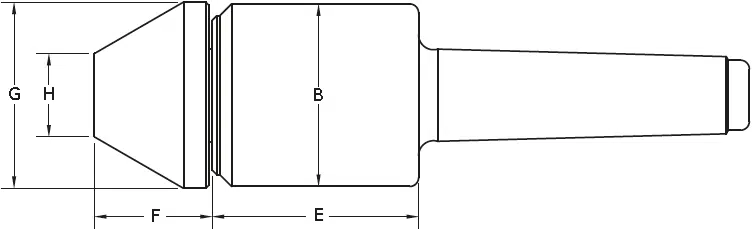

Royal High-Precision Quad-Bearing Live Centers – Bull Nose Point

Filters Sort results
Reset Apply
Taper
B
E
F
G
MAX.
SUGGESTED
RPM*
WEIGHT OF
WORKPIECE
(lbs.)
THRUST
LOAD (lbs.)
PART NUMBER
PRICE
2 MT
1.70
2.120
1.25
1.75
6,000
750
1,270
10490
$888
3 MT
1.70
2.120
1.25
1.75
6,000
750
1,270
10491
$888
4 MT
2.45
2.780
1.58
2.50
5,000
1,905
2,150
10492
$1,131
5 MT
2.45
2.780
1.58
2.50
5,000
1,905
2,150
10493
$1,190

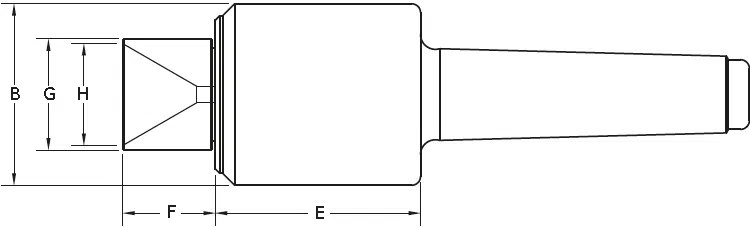

Royal High-Precision Quad-Bearing Live Centers – 90° Female Point

Filters Sort results
Reset Apply
Taper
B
E
F
G
H
MAX.
SUGGESTED
RPM
WEIGHT OF
WORKPIECE
(lbs.)
THRUST
LOAD (lbs.)
PART NUMBER
PRICE
2 MT
1.70
2.120
1.00
1.12
0.15 - 1.00
6,000
885
1,270
10494
$869
3 MT
1.70
2.120
1.00
1.12
0.15 - 1.00
6,000
885
1,270
10495
$869
4 MT
2.45
2.780
1.25
1.50
0.21 - 1.38
5,000
2,240
2,150
10496
$1,078
5 MT
2.45
2.780
1.25
1.50
0.21 - 1.38
5,000
2,240
2,150
10497
$1,131

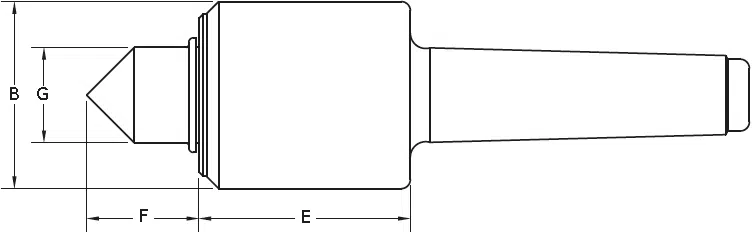

Royal High-Precision Quad-Bearing Live Centers – 90° Male Point

Filters Sort results
Reset Apply
Taper
B
E
F
G
MAX.
SUGGESTED
RPM*
WEIGHT OF
WORKPIECE
(lbs.)
THRUST
LOAD (lbs.)
PART NUMBER
PRICE
2 MT
1.70
2.120
1.07
0.88
6,000
885
1,270
10486
$860
3 MT
1.70
2.120
1.07
0.88
6,000
885
1,270
10487
$860
4 MT
2.45
2.780
1.47
1.25
5,000
2,240
2,150
10488
$1,067
5 MT
2.45
2.780
1.47
1.25
5,000
2,240
2,150
10489
$1,128
