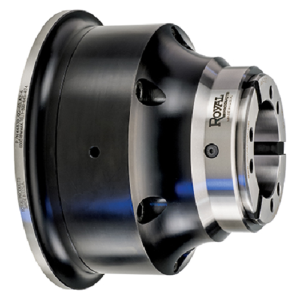

Royal Quick-Grip™ Pullback CNC Collet Chuck
QG-42 Compact with A2-5 Mount

$2,860.00

In Stock for Same Day Shipping

  • Traditional pullback design - collet is pulled into chuck to close, pushed out to open.
  • No collet stop capability, therefore this chuck style is typically used only on jobs where holding precise axial position is not critical.
  • 10-Second Collet Changes Slash Setup Times.
  • Industry-Leading Gripping Range – 0.062"
  • Ultra-Precision Accuracy – 0.0002" TIR Guarenteed.
  • Compact and ultra-compact models to suit all machines and applications.
  • Extreme Grip Force = Most Aggressive Chip Removal Rates and Fastest Cycle Times.
  • Maximum Rigidity Produces Superior Part Finishes.
  • Best Tool Clearance – Critical For Live Tooling.
  • Huge Inventory of Quick-Grip Collets and Accessories In-Stock for Same-Day Shipping.
  • Includes free custom machined connector to fit your exact lathe drawtube specifications.
  • In-stock for same day shipping.
  • Proudly Made in U.S.A.



Collet Chuck Weight (lbs)11
Spindle TypeA2-5
Collet TypeQG-42
Max Capacity: Bar1.66
Max Capacity: Slug2.62
(A) Overall Length4.45
(B) Nose Diameter4.11
(C) Nose Length3.50
(D) Body Diameter5.25
(E) Flange Diameter6.45
Max Drawbar Force (lbs)7,865
Max Clamping Force (lbs)17,980
Max RPM6,000
